Partial dependence plot of x against adjusted predicted y.
Usage
partialPlot(
object,
M = NULL,
xvar.names,
tm.unq,
xvar.unq = NULL,
npts = 25,
subset,
prob.class = FALSE,
conditional.xvars = NULL,
conditional.values = NULL,
plot.it = FALSE,
Variable_Factor = FALSE,
path_saveplot = NULL,
Verbose = TRUE,
useCVflag = FALSE,
...
)Arguments
- object
A boosting object of class
(boostmtree, grow).- M
Fixed value for the boosting step number. If NULL, then use Mopt if it is available from the object, else use M
- xvar.names
Names of the x-variables to be used. By default, all variables are plotted.
- tm.unq
Unique time points used for the plots of x against y. By default, the deciles of the observed time values are used.
- xvar.unq
Unique values used for the partial plot. Default is NULL in which case unique values are obtained uniformaly based on the range of variable. Values must be provided using list with same length as lenght of
xvar.names.- npts
Maximum number of points used for x. Reduce this value if plots are slow.
- subset
Vector indicating which rows of the x-data to be used for the analysis. The default is to use the entire data.
- prob.class
In case of ordinal response, use class probability rather than cumulative probability.
- conditional.xvars
Vector of character values indicating names of the x-variables to be used for further conditioning (adjusting) the predicted y values. Variable names should be different from
xvar.names.- conditional.values
Vector of values taken by the variables from
conditional.xvars. The length of the vector should be same as the length of the vector forconditional.xvars, which means only one value per conditional variable.- plot.it
Should plots be displayed?
- Variable_Factor
Default is FALSE. Use TRUE if the variable specified in
xvar.namesis a factor.- path_saveplot
Provide the location where plot should be saved. By default the plot will be saved at temporary folder.
- Verbose
Display the path where the plot is saved?
- useCVflag
Should the predicted value be based on the estimate derived from oob sample?
- ...
Further arguments passed to or from other methods.
Value
Invisibly returns a list with components p.obj (partial
effect estimates), l.obj (lowess smoothed partial plots, or
NULL if plot.it = FALSE), and time (time points
used for evaluation).
Details
Partial dependence plot (Friedman, 2001) of x values specified by
xvar.names against the adjusted predicted y-values over a set of time
points specified by tm.unq. Analysis can be restricted to a subset
of the data using subset. Further conditioning can be imposed using
conditional.xvars.
References
Friedman J.H. Greedy function approximation: a gradient boosting machine, Ann. of Statist., 5:1189-1232, 2001.
Examples
# \donttest{
##------------------------------------------------------------
## Synthetic example (Response is continuous)
## high correlation, quadratic time with quadratic interaction
##-------------------------------------------------------------
#simulate the data
dta <- simLong(n = 50, N = 5, rho =.80, model = 2,family = "Continuous")$dtaL
#basic boosting call
boost.grow <- boostmtree(dta$features, dta$time, dta$id, dta$y,family = "Continuous",M = 20)
#>
|
| | 0%
|
|==== | 5%
|
|======= | 10%
|
|========== | 15%
|
|============== | 20%
|
|================== | 25%
|
|===================== | 30%
|
|======================== | 35%
|
|============================ | 40%
|
|================================ | 45%
|
|=================================== | 50%
|
|====================================== | 55%
|
|========================================== | 60%
|
|============================================== | 65%
|
|================================================= | 70%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#>
|
|==================================================== | 75%
|
|======================================================== | 80%
|
|============================================================ | 85%
|
|=============================================================== | 90%
|
|================================================================== | 95%
|
|======================================================================| 100%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#plot results
#x1 has a linear main effect
#x2 is quadratic with quadratic time trend
pp.obj <- partialPlot(object = boost.grow, xvar.names = "x1",plot.it = TRUE)
#> Plot saved to: /tmp/RtmpMZ9NLM/PartialPlot.pdf
pp.obj <- partialPlot(object = boost.grow, xvar.names = "x2",plot.it = TRUE)
#> Plot saved to: /tmp/RtmpMZ9NLM/PartialPlot.pdf
#partial plot using "x2" as the conditional variable
pp.obj <- partialPlot(object = boost.grow, xvar.names = "x1",
conditional.xvar = "x2", conditional.values = 1,plot.it = TRUE)
#> Plot saved to: /tmp/RtmpMZ9NLM/PartialPlot.pdf
pp.obj <- partialPlot(object = boost.grow, xvar.names = "x1",
conditional.xvar = "x2", conditional.values = 2,plot.it = TRUE)
#> Plot saved to: /tmp/RtmpMZ9NLM/PartialPlot.pdf
##------------------------------------------------------------
## Synthetic example (Response is binary)
## high correlation, quadratic time with quadratic interaction
##-------------------------------------------------------------
#simulate the data
dta <- simLong(n = 50, N = 5, rho =.80, model = 2,family = "Binary")$dtaL
#basic boosting call
boost.grow <- boostmtree(dta$features, dta$time, dta$id, dta$y,family = "Binary",M = 20)
#>
|
| | 0%
|
|==== | 5%
|
|======= | 10%
|
|========== | 15%
|
|============== | 20%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#>
|
|================== | 25%
|
|===================== | 30%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#>
|
|======================== | 35%
|
|============================ | 40%
|
|================================ | 45%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#>
|
|=================================== | 50%
|
|====================================== | 55%
|
|========================================== | 60%
|
|============================================== | 65%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#>
|
|================================================= | 70%
|
|==================================================== | 75%
|
|======================================================== | 80%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#>
|
|============================================================ | 85%
|
|=============================================================== | 90%
|
|================================================================== | 95%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#>
|
|======================================================================| 100%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#plot results
#x1 has a linear main effect
#x2 is quadratic with quadratic time trend
pp.obj <- partialPlot(object = boost.grow, xvar.names = "x1",plot.it = TRUE)
#> Plot saved to: /tmp/RtmpMZ9NLM/PartialPlot.pdf
pp.obj <- partialPlot(object = boost.grow, xvar.names = "x2",plot.it = TRUE)
#> Plot saved to: /tmp/RtmpMZ9NLM/PartialPlot.pdf
# }
# \donttest{
##----------------------------------------------------------------------------

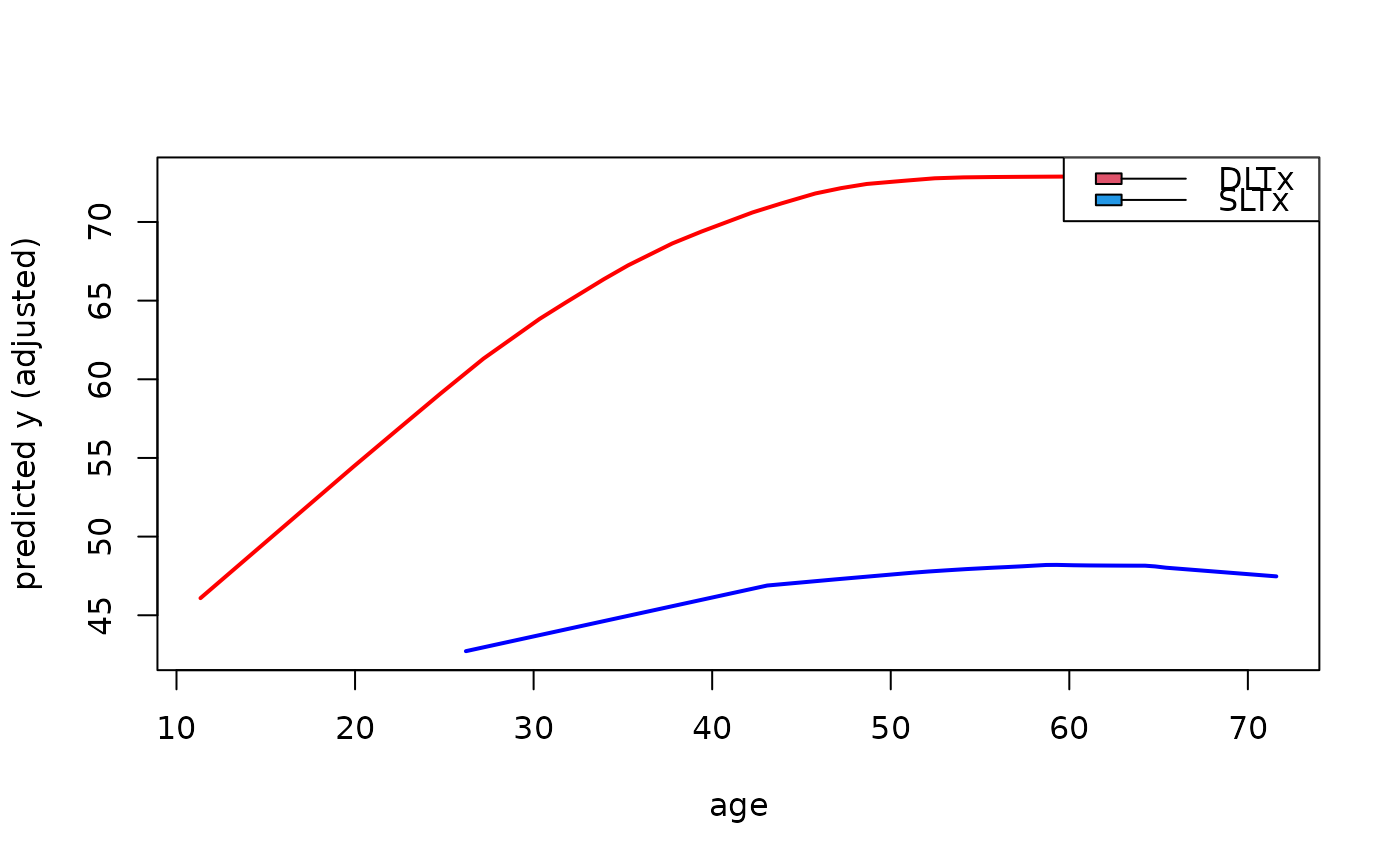

## spirometry data
##----------------------------------------------------------------------------
data(spirometry, package = "hvtiBoostmtree")
#boosting call: cubic B-splines with 15 knots
spr.obj <- boostmtree(spirometry$features, spirometry$time, spirometry$id, spirometry$y,
family = "Continuous",M = 300, nu = .025, nknots = 15)
#>
|
| | 0%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
| | 1%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|= | 1%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|= | 2%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|== | 2%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|== | 3%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=== | 4%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=== | 5%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|==== | 5%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|==== | 6%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|===== | 7%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|===== | 8%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|====== | 8%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|====== | 9%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======= | 9%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======= | 10%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======= | 11%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======== | 11%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======== | 12%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|========= | 12%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|========= | 13%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|========== | 14%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|========== | 15%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=========== | 15%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=========== | 16%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============ | 17%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============ | 18%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============= | 18%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============= | 19%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============== | 19%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============== | 20%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============== | 21%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=============== | 21%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=============== | 22%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================ | 22%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================ | 23%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================= | 24%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================= | 25%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================== | 25%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================== | 26%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=================== | 27%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=================== | 28%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|==================== | 28%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|==================== | 29%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|===================== | 29%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|===================== | 30%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|===================== | 31%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|====================== | 31%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|====================== | 32%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======================= | 32%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======================= | 33%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======================== | 34%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======================== | 35%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|========================= | 35%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|========================= | 36%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|========================== | 37%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|========================== | 38%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=========================== | 38%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=========================== | 39%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================ | 39%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================ | 40%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================ | 41%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================= | 41%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================= | 42%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================== | 42%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================== | 43%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=============================== | 44%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=============================== | 45%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================ | 45%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================ | 46%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================= | 47%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================= | 48%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================== | 48%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================== | 49%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=================================== | 49%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=================================== | 50%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=================================== | 51%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|==================================== | 51%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|==================================== | 52%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|===================================== | 52%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|===================================== | 53%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|====================================== | 54%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|====================================== | 55%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======================================= | 55%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======================================= | 56%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======================================== | 57%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======================================== | 58%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|========================================= | 58%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|========================================= | 59%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|========================================== | 59%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|========================================== | 60%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|========================================== | 61%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=========================================== | 61%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=========================================== | 62%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================================ | 62%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================================ | 63%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================================= | 64%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================================= | 65%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================================== | 65%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================================== | 66%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=============================================== | 67%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=============================================== | 68%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================================ | 68%
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================================ | 69%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================================= | 69%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================================= | 70%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================================= | 71%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================================== | 71%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================================== | 72%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=================================================== | 72%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=================================================== | 73%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|==================================================== | 74%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|==================================================== | 75%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|===================================================== | 75%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|===================================================== | 76%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|====================================================== | 77%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|====================================================== | 78%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======================================================= | 78%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======================================================= | 79%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======================================================== | 79%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======================================================== | 80%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======================================================== | 81%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|========================================================= | 81%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|========================================================= | 82%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|========================================================== | 82%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|========================================================== | 83%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=========================================================== | 84%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=========================================================== | 85%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================================================ | 85%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================================================ | 86%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================================================= | 87%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================================================= | 88%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================================================== | 88%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|============================================================== | 89%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=============================================================== | 89%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=============================================================== | 90%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> qr.solve failed (Hessian NR): singular matrix 'a' in solve
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=============================================================== | 91%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================================================ | 91%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================================================ | 92%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================================================= | 92%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================================================= | 93%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================================================== | 94%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|================================================================== | 95%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=================================================================== | 95%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|=================================================================== | 96%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|==================================================================== | 97%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|==================================================================== | 98%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|===================================================================== | 98%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|===================================================================== | 99%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======================================================================| 99%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
|
|======================================================================| 100%
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#>
#> gls (full model) failed: computed "gls" fit is singular, rank 25
#partial plot of double-lung group at 5 years
dltx <- partialPlot(object = spr.obj, xvar.names = "AGE",
tm.unq = 5, subset=spr.obj$x$DOUBLE==1,plot.it = TRUE)
#> Plot saved to: /tmp/RtmpMZ9NLM/PartialPlot.pdf
#partial plot of single-lung group at 5 years
sltx <- partialPlot(object = spr.obj, xvar.names = "AGE",
tm.unq = 5, subset=spr.obj$x$DOUBLE==0,plot.it = TRUE)
#> Plot saved to: /tmp/RtmpMZ9NLM/PartialPlot.pdf
#combine the two plots: we use lowess smoothed values
dltx <- dltx$l.obj[[1]]
sltx <- sltx$l.obj[[1]]
plot(range(c(dltx[, 1], sltx[, 1])), range(c(dltx[, -1], sltx[, -1])),
xlab = "age", ylab = "predicted y (adjusted)", type = "n")
lines(dltx[, 1], dltx[, -1], lty = 1, lwd = 2, col = "red")
lines(sltx[, 1], sltx[, -1], lty = 1, lwd = 2, col = "blue")
legend("topright", legend = c("DLTx", "SLTx"), lty = 1, fill = c(2,4))
# }
