Color and fill scales that apply the role rule to each panel

Discrete scales that color each panel by hv_role_palette(): event vermillion, censored blue, missing light gray, and colorblind-safe colors for everything else. Add one to a page of panels with & and every panel is colored from its own levels, so a panel without the event still draws its levels from blue.

Usage

scale_fill_hv(
  event = NULL,
  censored = NULL,
  missing = "(Missing)",
  na.value = .HV_ROLE_MISSING,
  ...
)

scale_color_hv(
  event = NULL,
  censored = NULL,
  missing = "(Missing)",
  na.value = .HV_ROLE_MISSING,
  ...
)

scale_colour_hv(
  event = NULL,
  censored = NULL,
  missing = "(Missing)",
  na.value = .HV_ROLE_MISSING,
  ...
)

Arguments

event, censored: Level names that take the event or the censored color, or NULL for none. Names not in levels are ignored.
missing: Level name that stands for missing values. "(Missing)" is the explicit level hv_eda() adds.
na.value: Color for a real NA. The default is the missing gray, so an NA and a "(Missing)" level look the same.
...: Passed to ggplot2::discrete_scale(): name, labels, guide and so on.

Value

A discrete ggplot2 scale for the color or fill aesthetic.

Details

scale_colour_hv() is an alias of scale_color_hv(), the same pairing of British and US names that ggplot2 gives its own color scales.

Colors stay the caller's choice: no constructor or plot() method in this package applies these scales for you.

A panel with more levels than the colorblind-safe palettes hold is drawn in ggplot2's default hue palette instead, with a warning naming its level count, so one variable with many levels does not stop a report. Call hv_role_palette() directly to get an error in that case.

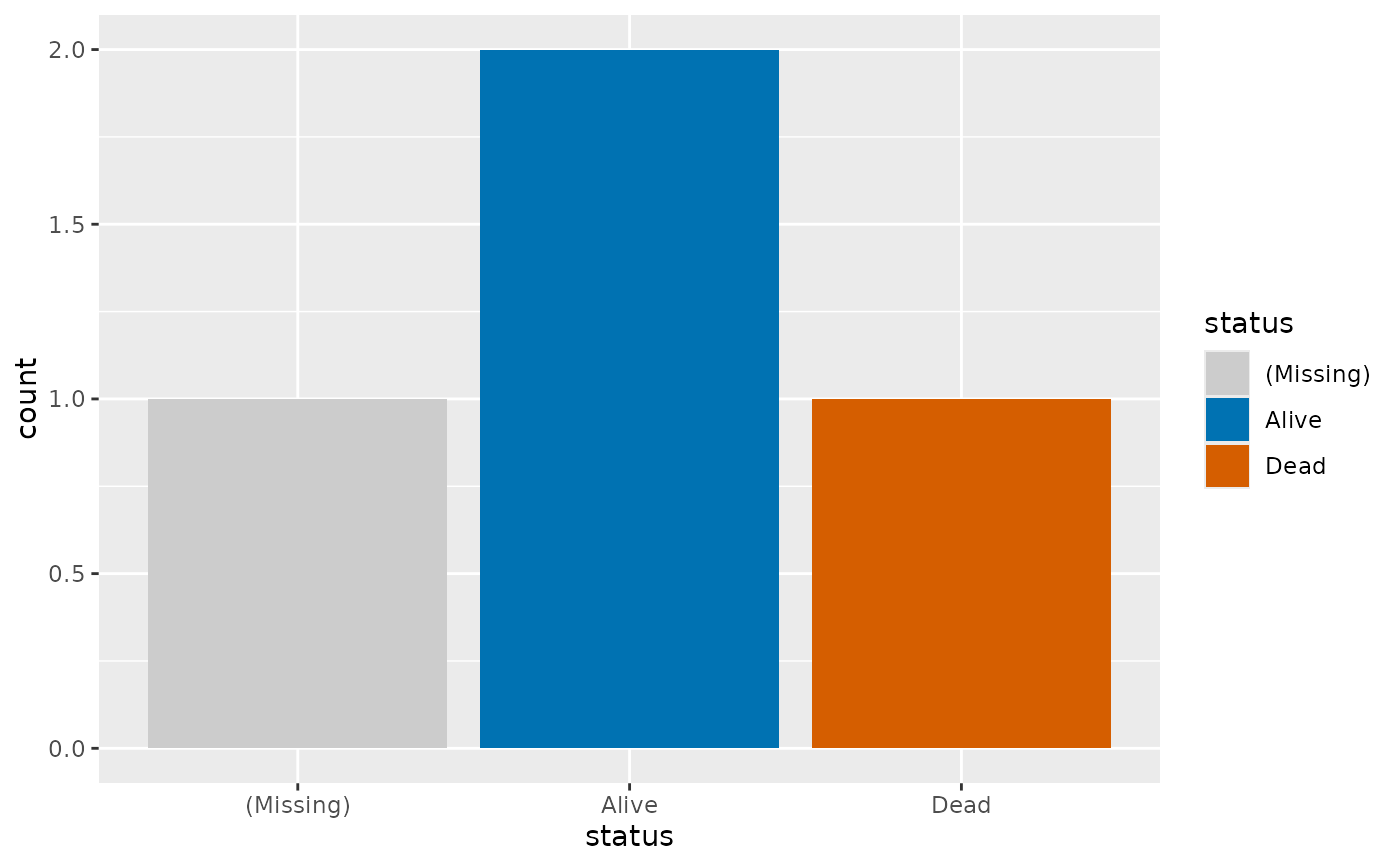

Examples

dta <- data.frame(status = c("Alive", "Dead", "Alive", "(Missing)"))
ggplot2::ggplot(dta, ggplot2::aes(status, fill = status)) +
  ggplot2::geom_bar() +
  scale_fill_hv(event = "Dead", censored = "Alive")
