Tidy time-localized variable priority from a Random Hazard Forest

Extracts the variable-priority matrix from randomForestRHF::importance.rhf() into a tidy data frame, one row per variable and time window. The score measures how much the fitted integrated hazard changes when rules involving a variable are released.

Usage

gg_rhf_importance(object, ...)

# S3 method for class 'rhf'
gg_rhf_importance(
  object,
  importance_fit = NULL,
  cache = NULL,
  time.index = NULL,
  ...
)

Arguments

object: A fitted rhf object from randomForestRHF.
...: Additional arguments passed to randomForestRHF::importance.rhf() when importance_fit is NULL.
importance_fit: Optional precomputed randomForestRHF::importance.rhf() result for the same object. Supply this object when you have already calculated variable priority. NULL (default) calculates it from object.
cache: Optional precomputed randomForestRHF::varpro.cache.rhf() result used when importance_fit is NULL.
time.index: Optional time-grid indices passed to randomForestRHF::importance.rhf() when importance_fit is NULL.

Value

A data.frame of class c("gg_rhf_importance", "data.frame") with columns:

variable: Variable name, ordered by q90 priority for plotting.
time_window: Upstream time-window label.
time: Evaluation time at the end of the window.
time_index: Index of time on the RHF time grid.
start, stop, midpoint: Window boundaries and midpoint.
n_risk: Number of observations at risk.
n_rules: Number of rules contributing to the window.
priority: RHF variable-priority score.

A provenance attribute records the source forest, upstream settings, whether importance_fit was supplied, and the installed randomForestRHF version.

Details

Variable priority is time-localized. A large value means that releasing rules involving that variable changed the log integrated hazard more in that window. It is a ranking score, not a z-score, and this function does not apply a significance cutoff.

Calculating the upstream result can be expensive. For an analysis you will revisit, calculate importance_fit once and supply it here. The extractor accepts cache, time.index, and additional calculation arguments only when importance_fit is NULL.

Variables are ordered for plotting by their 90th percentile (q90) priority across windows. This changes the factor levels, but does not change the upstream row order or priority values.

References

Ishwaran H, Hsich EM, Kogalur UB, Lee DKK (2026). Random Hazard Forests. arXiv:2608.21597. doi:10.48550/arXiv.2608.21597 .

Ishwaran H, Kogalur UB (2026). randomForestRHF: Random Hazard Forests. R package version 2.0.3. https://CRAN.R-project.org/package=randomForestRHF.

Examples

# \donttest{
if (requireNamespace("randomForestRHF", quietly = TRUE)) {
  data(pbc, package = "randomForestSRC")
  d <- randomForestRHF::convert.counting(
    survival::Surv(days, status) ~ ., na.omit(pbc))
  o <- randomForestRHF::rhf(
    "Surv(id, start, stop, event) ~ .", d, ntree = 30)

  priority_fit <- randomForestRHF::importance.rhf(o)

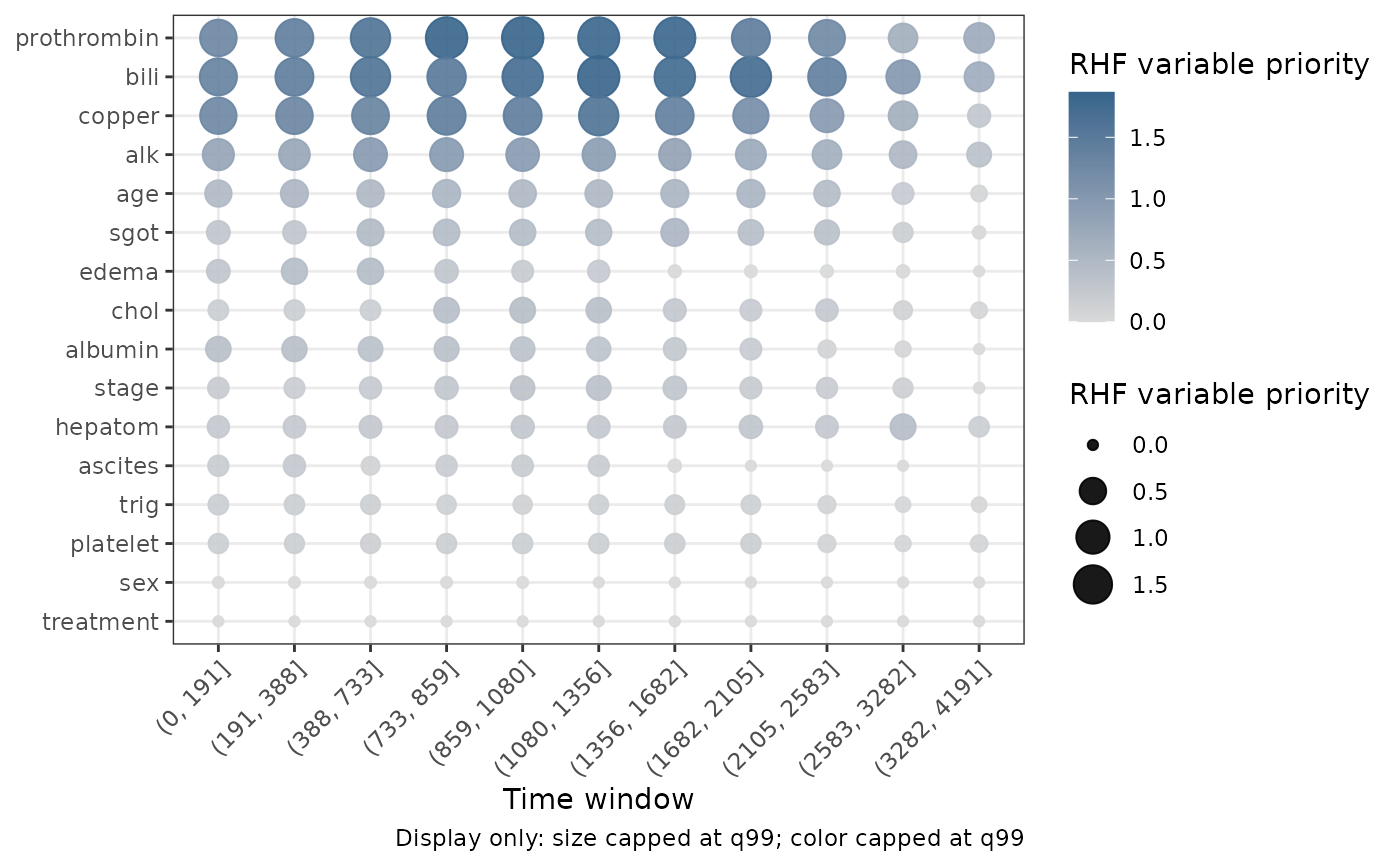

  priority <- gg_rhf_importance(o, importance_fit = priority_fit)
  plot(priority)
}

# }
