Tidy a Random Hazard Forest tuning path

Extracts an already calculated tree-size tuning path from randomForestRHF::tune.treesize.rhf() into a data frame for inspection and plotting. The expensive step is upstream tuning. Calculate and retain that result once, then supply it to gg_tune_rhf() when you need the saved search path or its plot. gg_tune_rhf() only prepares that path; it never tunes a forest.

Usage

gg_tune_rhf(tune_fit, ...)

# S3 method for class 'tune.treesize.rhf'
gg_tune_rhf(tune_fit, ...)

Arguments

tune_fit: An object inheriting from tune.treesize.rhf, typically returned by randomForestRHF::tune.treesize.rhf(), randomForestRHF::tune.rhf(), or randomForestRHF::tune.iAUC.rhf().
...: Additional arguments reserved for methods.

Value

A data.frame with class c("gg_tune_rhf", "data.frame") and columns treesize, metric, value, se, and selected. The provenance attribute contains the upstream settings described in gg_tune_rhf.

Details

The returned path preserves the row order in tune_fit$path. Its columns are treesize (evaluated forest size), metric ("OOB risk" or "OOB iAUC"), value (the observed metric), se (the supplied bootstrap iAUC standard error, or NA_real_), and selected (whether that size is the upstream best.size). Upstream tuning minimizes OOB risk or maximizes OOB iAUC.

Provenance is stored in the provenance attribute: best_size is the selected tree size; best_err is OOB risk for risk tuning and 1 - iAUC for iAUC tuning; perf identifies the criterion; method is the upstream search method; bounds gives its tree-size range; n_evaluations counts the evaluated sizes; and randomForestRHF_version records the installed upstream package version. The optional fitted forest is not copied into the tidy result.

References

Ishwaran H, Hsich EM, Kogalur UB, Lee DKK (2026). Random Hazard Forests. arXiv:2608.21597. doi:10.48550/arXiv.2608.21597 .

Ishwaran H, Kogalur UB (2026). randomForestRHF: Random Hazard Forests. R package version 2.0.3. https://CRAN.R-project.org/package=randomForestRHF.

Examples

# \donttest{
if (requireNamespace("randomForestRHF", quietly = TRUE)) {
  ## Calculate this expensive result once and retain it for reuse.
  simulated <- randomForestRHF::hazard.simulation(1, n = 100, nrecords = 3)
  tune_fit <- randomForestRHF::tune.iAUC.rhf(
    "Surv(id, start, stop, event) ~ .",
    simulated$dta,
    ntree = 12L,
    lower = 2L,
    upper = 5L,
    verbose = FALSE,
    forest = FALSE
  )
  tuning <- gg_tune_rhf(tune_fit)

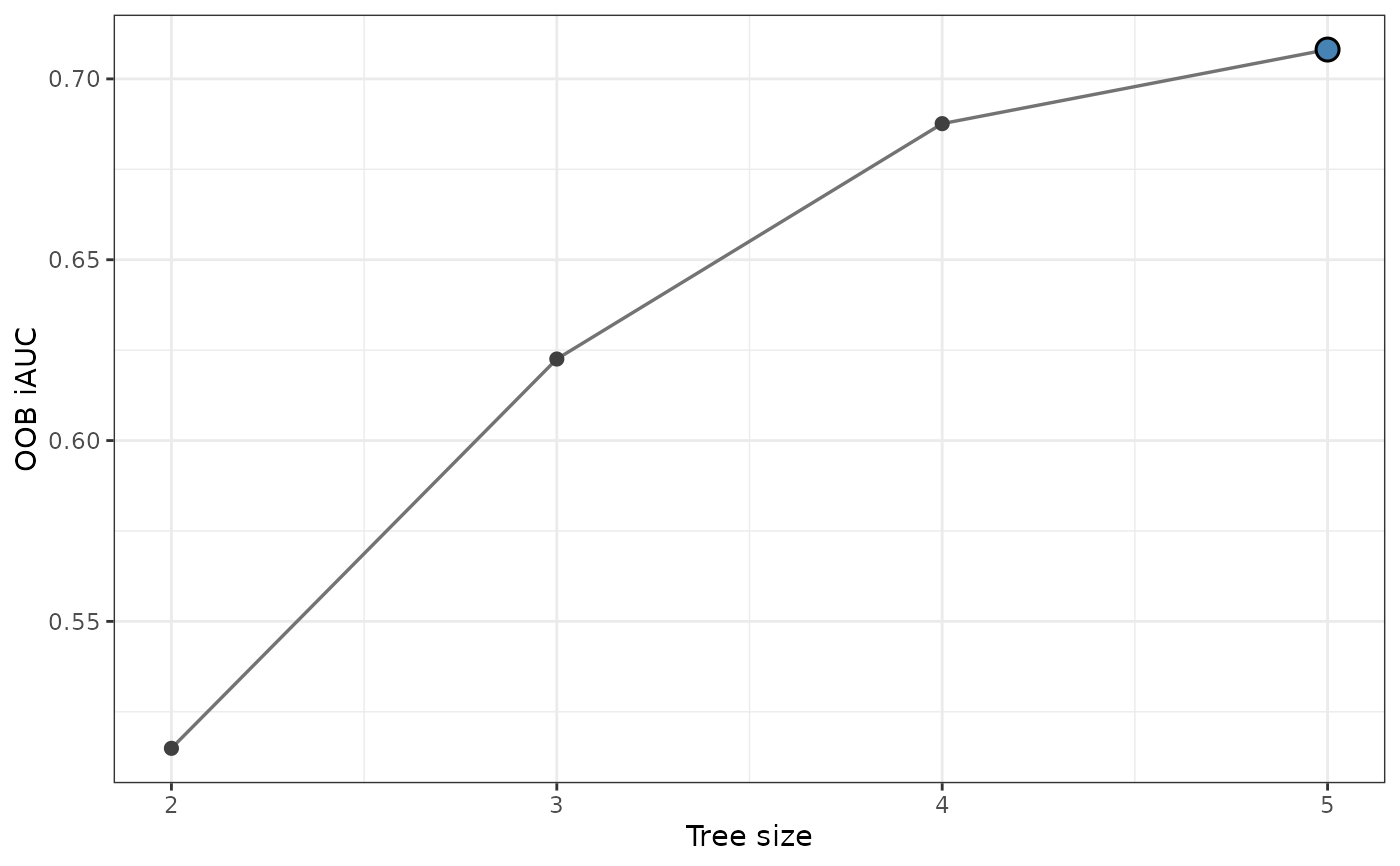

  plot(tuning)
}

# }
