Prepare cluster stability Sankey data for plotting

Source: R/cluster-sankey-plot.R
hv_sankey.Rd

Validates a wide cluster-assignment data frame, resolves node level ordering, computes default node colours if not supplied, and pre-computes the long-format Sankey data. Call plot.hv_sankey on the result to obtain a bare ggplot2 Sankey diagram using ggsankey geoms.

Usage

hv_sankey(
  data,
  cluster_cols = paste0("C", 2:9),
  node_levels = NULL,
  node_colours = NULL
)

Arguments

data

Data frame; one row per patient. Must contain all columns named in cluster_cols.

cluster_cols

Character vector of column names giving the cluster assignments at each value of K, in ascending K order. Default paste0("C", 2:9).

node_levels

Character vector giving the display order of node labels (bottom to top within each column). If NULL (default), a lineage-preserving order is derived from the data so each child cluster sits next to its parent and flows stay uncrossed (see Details). If supplied, it is used verbatim but must cover every observed cluster label.

node_colours

Named character vector mapping node labels to fill colours. If NULL (default), labels are mapped to an inline ColorBrewer Set1 hex palette in node_levels order (no dependency on RColorBrewer). When there are more labels than palette colours the palette is recycled with a warning.

Value

An object of class c("hv_sankey", "hv_data"):

$data

The long-format Sankey data frame (four columns: x, node, next_x, next_node).

$meta

Named list: cluster_cols, node_levels, node_colours, n_patients, n_k.

$tables

Empty list.

Details

By default (node_levels = NULL) the node order is read from the data, not from one column's factor levels. We take every label that appears in any cluster_cols column, so no finer-K cluster is dropped to NA, and place each child next to its parent: the coarser-K cluster that contributes most of its members. Siblings end up together, the way leaves sit in a dendrogram, and the flows stay short and uncrossed. Pass node_levels yourself to override this; it is then used as given, but it must name every label in the data.

See also

Worked recipe with rendered output: https://ehrlinger.github.io/hvti_graphics/sankey.html.

plot.hv_sankey, sample_cluster_sankey_data

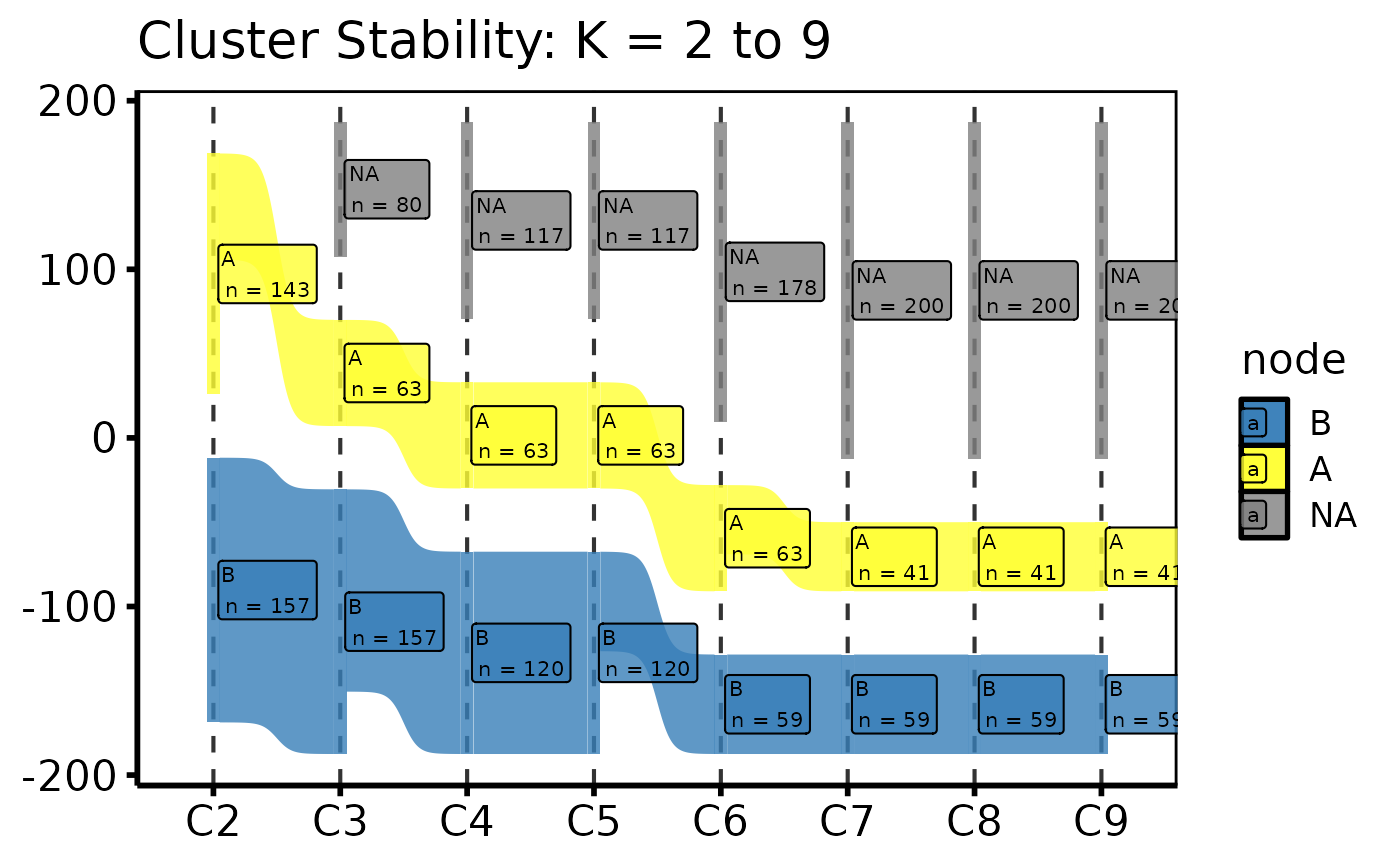

Examples

dta <- sample_cluster_sankey_data(n = 300, seed = 42)

if (requireNamespace("ggsankey", quietly = TRUE)) {
  # 1. Build data object
  sn <- hv_sankey(dta)
  sn  # prints cluster cols and node count

  # 2. Bare plot -- undecorated ggplot returned by plot.hv_sankey
  p <- plot(sn)

  # 3. Decorate: axis labels and theme
  p +
    ggplot2::labs(x = NULL, title = "Cluster Stability: K = 2 to 9") +
    theme_hv_poster()
}
#> Warning: The `size` argument of `element_rect()` is deprecated as of ggplot2 3.4.0.
#> ℹ Please use the `linewidth` argument instead.
#> ℹ The deprecated feature was likely used in the ggsankey package.
#>   Please report the issue at <https://github.com/davidsjoberg/ggsankey/issues>.
