Plot an hv_alluvial object

Draws a Sankey (alluvial) diagram using geom_alluvium and geom_stratum.

Usage

# S3 method for class 'hv_alluvial'
plot(
  x,
  stratum_fill = "grey80",
  stratum_width = 1/4,
  flow_width = 1/6,
  alpha = 0.8,
  knot_pos = 0.4,
  show_labels = TRUE,
  ...
)

Arguments

x

An hv_alluvial object.

stratum_fill

Fill colour for the stratum bars. Default "grey80".

stratum_width

Width of the stratum bars as a fraction of axis spacing. Default 1/4.

flow_width

Width of the alluvium flows. Default 1/6.

alpha

Transparency of the flows, \([0,1]\). Default 0.8.

knot_pos

Curvature of the flow ribbons, \([0,1]\). Default 0.4.

show_labels

Logical; whether to label each stratum. Default TRUE.

...

Ignored; present for S3 consistency.

Value

A bare ggplot object.

See also

hv_alluvial, hv_theme

Examples

dta  <- sample_alluvial_data(n = 300, seed = 42)
axes <- c("pre_ar", "procedure", "post_ar")

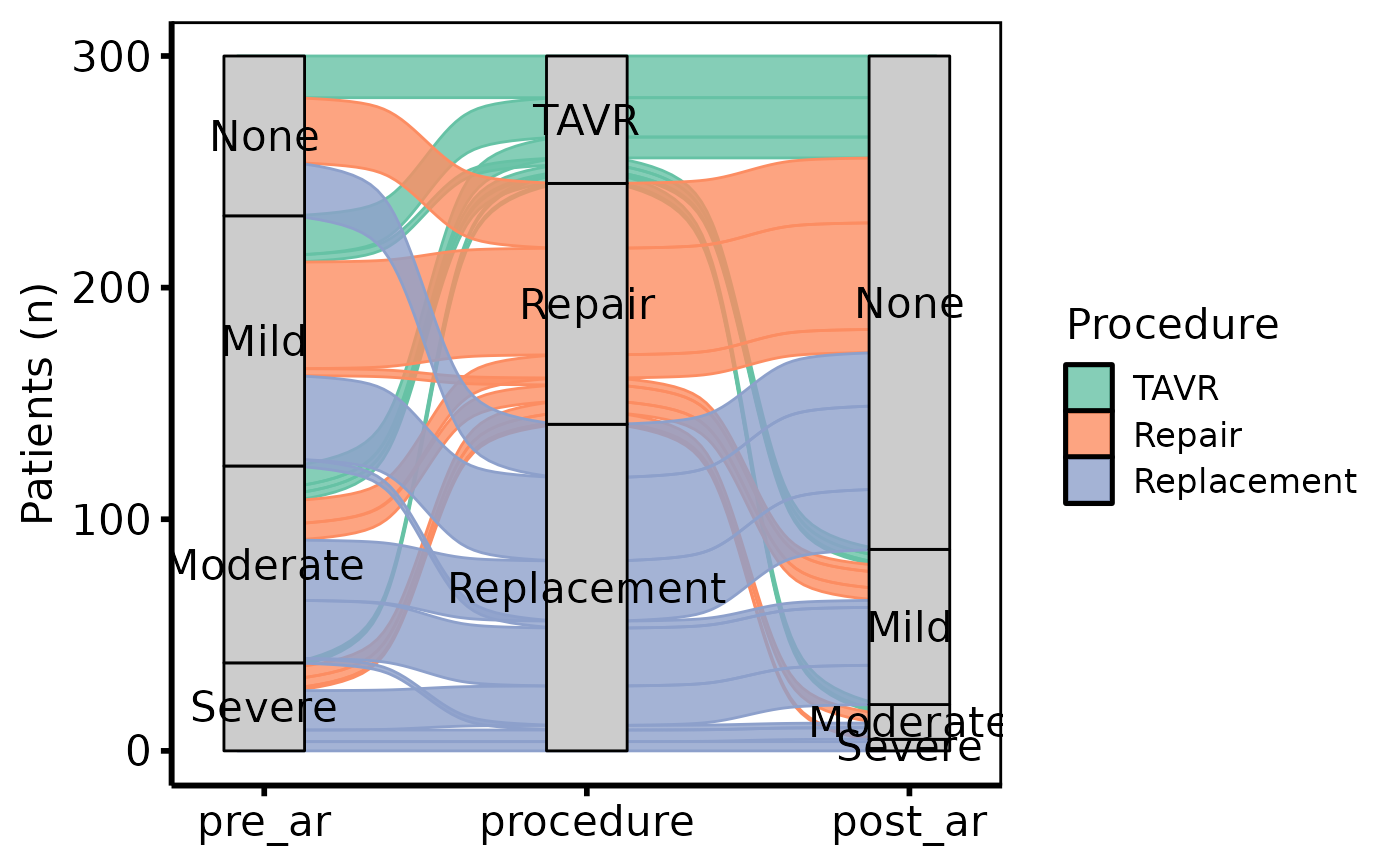

# Fill flows by procedure
plot(hv_alluvial(dta, axes = axes, y_col = "freq",
                   fill_col = "procedure")) +
  ggplot2::scale_fill_brewer(palette = "Set2", name = "Procedure") +
  ggplot2::scale_colour_brewer(palette = "Set2", guide = "none") +
  ggplot2::labs(y = "Patients (n)") +
  hv_theme("poster")
#> Warning: Some strata appear at multiple axes.
#> Warning: Some strata appear at multiple axes.
#> Warning: Some strata appear at multiple axes.

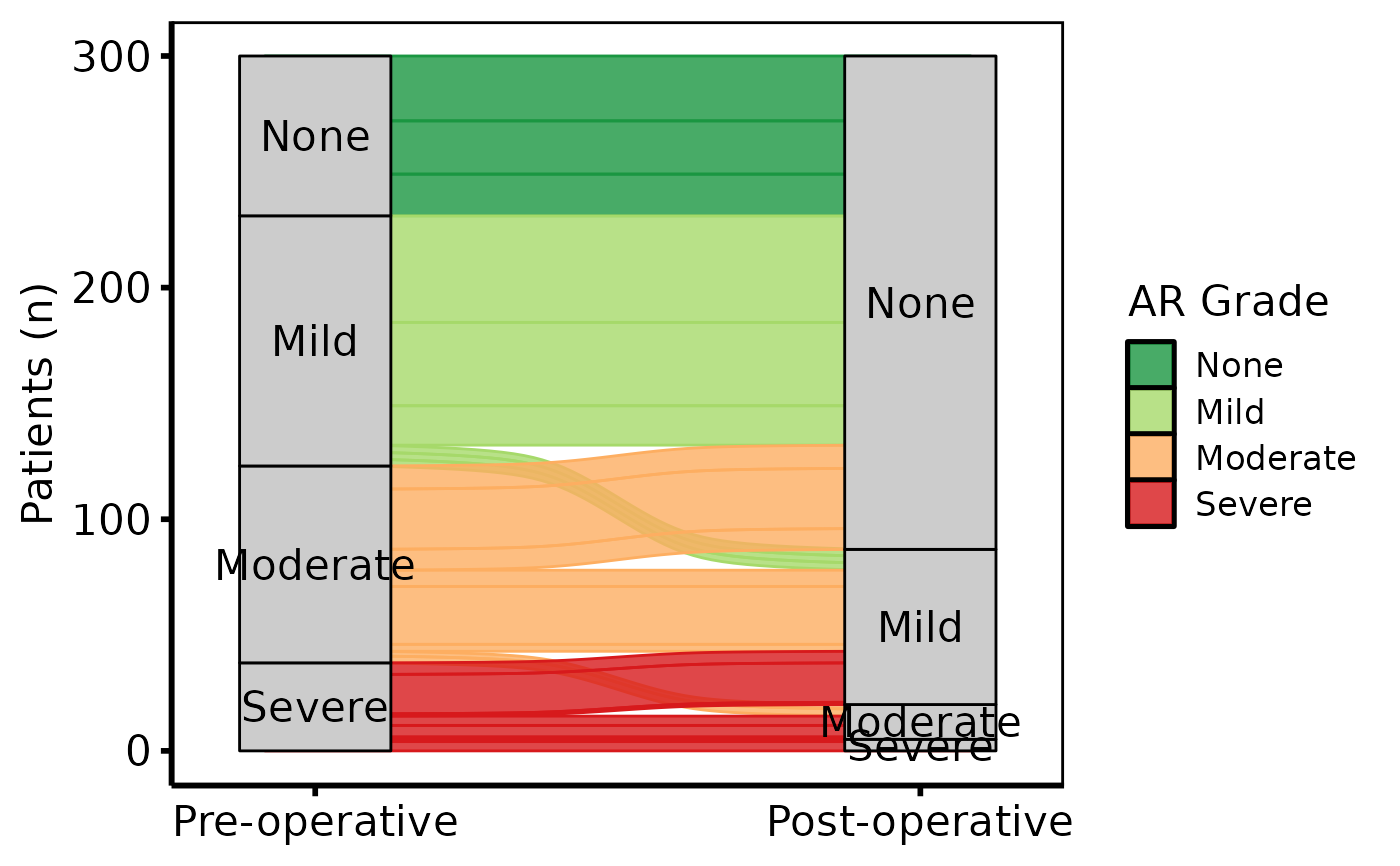

# Two-axis (before / after)
plot(hv_alluvial(
  dta, axes = c("pre_ar", "post_ar"), y_col = "freq",
  fill_col = "pre_ar",
  axis_labels = c("Pre-operative", "Post-operative")
)) +
  ggplot2::scale_fill_brewer(palette = "RdYlGn", direction = -1,
                             name = "AR Grade") +
  ggplot2::scale_colour_brewer(palette = "RdYlGn", direction = -1,
                               guide = "none") +
  ggplot2::labs(y = "Patients (n)") +
  hv_theme("poster")
#> Warning: Some strata appear at multiple axes.
#> Warning: Some strata appear at multiple axes.
#> Warning: Some strata appear at multiple axes.
