Plot an hv_upset object

Source: R/upset-plot.R
plot.hv_upset.Rd

Draws an UpSet plot using scale_x_upset.

Usage

# S3 method for class 'hv_upset'
plot(
  x,
  n_intersections = 10L,
  sort_by = c("freq", "degree"),
  fill_col = NULL,
  bar_fill = "grey40",
  set_size = TRUE,
  set_size_position = c("right", "left"),
  set_size_sort = c("descending", "ascending", "none"),
  set_size_fill = "steelblue",
  width_ratio = 0.3,
  ...
)

Arguments

x

An hv_upset object.

n_intersections

Number of intersections to display, ordered by sort_by. Default 10.

sort_by

How to order intersections: "freq" (default, by frequency) or "degree" (by number of sets in each combination).

fill_col

Optional column name in x$data to fill the intersection bars by (stacks bars by group). Default NULL (single colour, supplied via bar_fill).

bar_fill

Single fill colour for the intersection bars when fill_col is NULL. Default "grey40".

set_size

Logical; if TRUE (default), compose a set-size sidebar as a patchwork. If FALSE, return only the intersection-bar ggplot.

set_size_position

"right" (default) or "left".

set_size_sort

Sort order for the sidebar: "descending" (default), "ascending", or "none" (preserve intersect order).

set_size_fill

Fill colour for the sidebar bars. Default "steelblue".

width_ratio

Fraction of horizontal space given to the set-size sidebar (only used when set_size = TRUE). Default 0.3.

...

Ignored; present for S3 consistency.

Value

A ggplot when set_size = FALSE (themes apply with +); a patchwork composite when set_size = TRUE (default; themes apply with & to cover all sub-panels).

Details

When set_size = TRUE (the default) the function composes a patchwork of two plots: a horizontal set-size sidebar and the intersection bar chart. Apply themes to all panels with patchwork's & operator:

plot(up) & theme_hv_poster()

Pass set_size = FALSE to get a single intersection-bar ggplot for full customisation; themes then apply via +:

plot(up, set_size = FALSE) + theme_hv_poster()

See also

hv_upset, theme_hv_manuscript

Examples

sets <- c("AV_Replacement", "AV_Repair", "MV_Replacement", "MV_Repair",
          "TV_Repair", "Aorta", "CABG")
dta <- sample_upset_data(n = 300, seed = 42)
up  <- hv_upset(dta, intersect = sets)

# Default: intersection bars + set-size sidebar (patchwork composite).
# Use `&` to theme every sub-panel.
plot(up) & theme_hv_poster()
#> Warning: Removed 30 rows containing non-finite outside the scale range (`stat_count()`).


if (FALSE) { # \dontrun{
# Intersection bars only — single ggplot, themes apply with `+`.

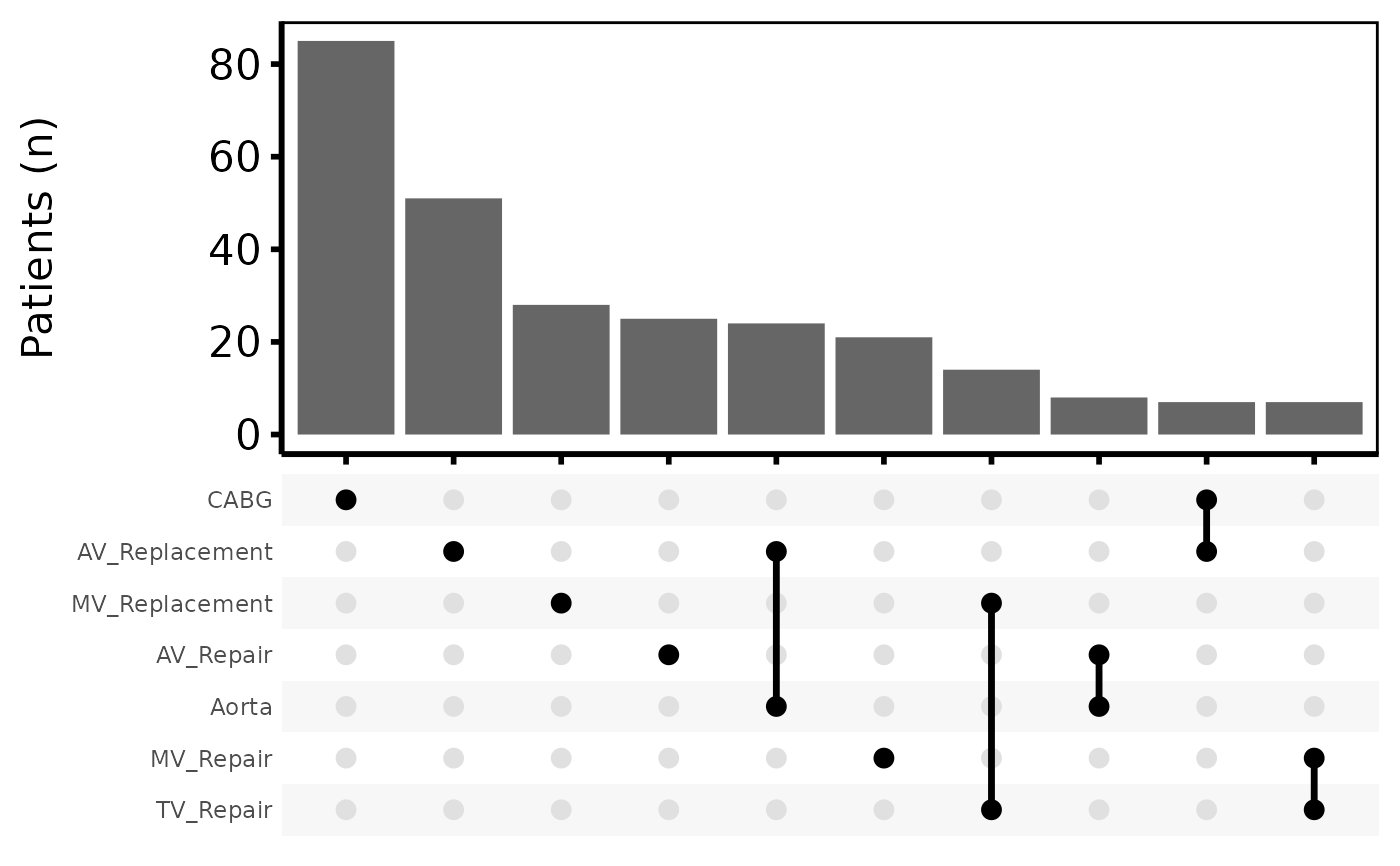

plot(up, set_size = FALSE) + theme_hv_poster()

# Fill bars by an external grouping variable (e.g. era).
dta$era <- ifelse(seq_len(nrow(dta)) <= 150, "Early", "Recent")
up_era  <- hv_upset(dta, intersect = sets)

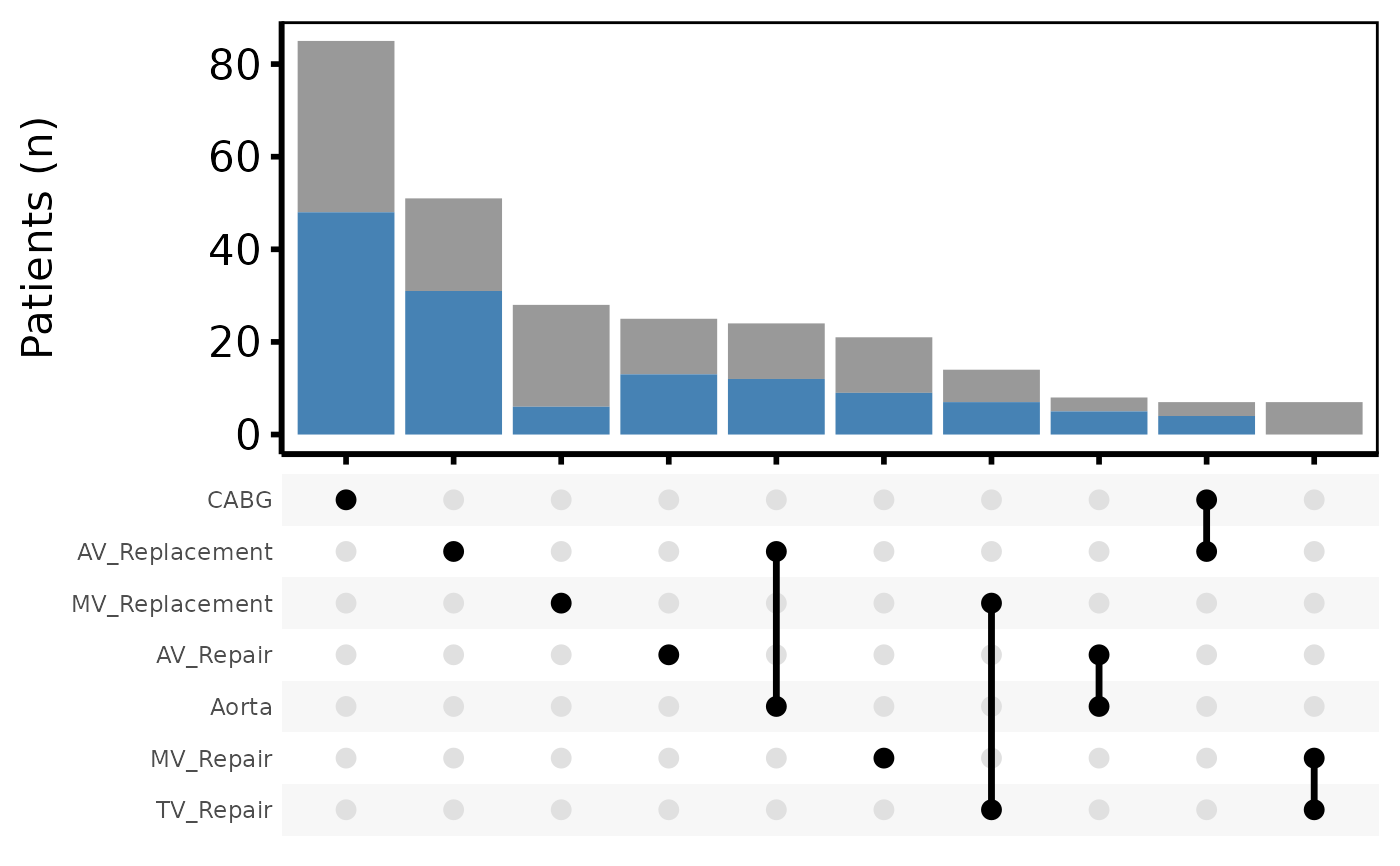

plot(up_era, fill_col = "era", set_size = FALSE) +
  ggplot2::scale_fill_manual(
    values = c(Early = "grey60", Recent = "steelblue"),
    name   = "Era"
  ) +
  theme_hv_poster()
} # }
