Parametric Hazard / Survival Plot

Superseded.

hazard_plot() has been superseded by the S3 constructor hv_hazard() plus plot.hv_hazard().

Plots a pre-computed parametric survival, hazard, or cumulative-hazard curve from a Weibull (or other parametric) model, optionally overlaid with Kaplan-Meier empirical estimates and a population life-table reference. Covers the complete family of tp.hp.dead.* SAS templates.

SAS template	R usage
Basic survival (tp.hp.dead.sas)	`hazard_plot(dat, estimate_col="survival")`
Basic hazard (tp.hp.dead.sas)	`hazard_plot(dat, estimate_col="hazard")`
Cumulative hazard (tp.hp.event.weighted.sas)	`hazard_plot(dat, estimate_col="cumhaz")`
Stratified by group (tp.hp.dead.tkdn.stratified.sas)	`+ group_col="group"`
KM empirical overlay	`+ empirical=emp_data`
Life table overlay (tp.hp.dead.uslife.stratifed.sas)	`+ reference=lt_data`
Age as x-axis (tp.hp.dead.age_on_horizontal_axis.sas)	`x_col="age"`

SAS column mapping:

x_col ← YEARS / iv_dead
estimate_col ← SSURVIV (survival), hazard (%/yr), or cumhaz
lower_col ← SCLLSURV / cll_p95
upper_col ← SCLUSURV / clu_p95
group_col ← treatment/group indicator variable
empirical ← the plout / acpdms KM output dataset
reference ← the smatched life-table dataset

Returns a bare ggplot object; compose with scale_colour_*, scale_y_continuous(), labs(), hv_theme().

Usage

hazard_plot(
  curve_data,
  x_col = "time",
  estimate_col = "survival",
  lower_col = NULL,
  upper_col = NULL,
  group_col = NULL,
  empirical = NULL,
  emp_x_col = x_col,
  emp_estimate_col = "estimate",
  emp_lower_col = NULL,
  emp_upper_col = NULL,
  emp_group_col = group_col,
  reference = NULL,
  ref_x_col = x_col,
  ref_estimate_col = estimate_col,
  ref_group_col = NULL,
  ci_alpha = 0.2,
  line_width = 1,
  point_size = 2,
  point_shape = 1L,
  errorbar_width = 0.25
)

Arguments

curve_data: Data frame of parametric predictions (fine grid). Typical source: SAS predict dataset exported to CSV, or sample_hazard_data().
x_col: Name of the time (or age) column. Corresponds to YEARS / iv_dead in SAS. Default "time".
estimate_col: Name of the predicted-value column. Use "survival" for a survival plot, "hazard" for a hazard-rate plot, or "cumhaz" for a cumulative-hazard plot. Corresponds to SSURVIV, hazard, or cumhaz in the SAS output. Default "survival".
lower_col: Name of the lower CI column in curve_data, or NULL for no ribbon. Corresponds to SCLLSURV / cll_p95. Default NULL.
upper_col: Name of the upper CI column in curve_data, or NULL. Corresponds to SCLUSURV / clu_p95. Default NULL.
group_col: Name of the stratification column in curve_data, or NULL for a single curve. Default NULL.
empirical: Optional data frame of Kaplan-Meier empirical estimates (discrete time points). Corresponds to the SAS plout / acpdms dataset. See sample_hazard_empirical(). Default NULL.
emp_x_col: Column name for x in empirical. Default: same as x_col.
emp_estimate_col: Column name for y in empirical. Default: same as estimate_col.
emp_lower_col: Column name for error-bar lower bound in empirical, or NULL for no error bars. Default NULL.
emp_upper_col: Column name for error-bar upper bound in empirical, or NULL. Default NULL.
emp_group_col: Column name for grouping in empirical. Default: same as group_col.
reference: Optional data frame of population life-table survival curves. Corresponds to the SAS smatched / hmatched datasets. See sample_life_table(). Rendered as dashed lines. Default NULL.
ref_x_col: Column name for x in reference. Default: same as x_col.
ref_estimate_col: Column name for y in reference. Default: same as estimate_col.
ref_group_col: Column name used to vary the linetype of the reference curves (e.g. age group). Default NULL.
ci_alpha: Transparency of the parametric CI ribbon ([0, 1]). Default 0.20.
line_width: Width of the parametric curve line. SAS width=3 corresponds roughly to 1.2. Default 1.0.
point_size: Size of empirical overlay points. Default 2.0.
point_shape: Shape code for empirical points. 1 = open circle (SAS symbol=circle); 0 = open square (SAS symbol=square). Default 1.
errorbar_width: Width of the error bars on empirical points. Default 0.25.

Value

A ggplot2::ggplot() object.

References

SAS templates: tp.hp.dead.sas, tp.hp.dead.tkdn.stratified.sas, tp.hp.dead.age_with_population_life_table.sas, tp.hp.dead.uslife.stratifed.sas, tp.hp.dead.matching_weight.sas, tp.hp.dead.limited_FET.mtwt.sas, tp.hp.event.weighted.sas, tp.hp.repeated.event.weighted.sas, tp.hp.repeated_events.sas, tp.hp.mcs.mod.dead.devseq_nlvlv12.scallop.sas.

Examples

library(ggplot2)

dat <- sample_hazard_data(n = 500, time_max = 10)
emp <- sample_hazard_empirical(n = 500, time_max = 10, n_bins = 6)

# --- (1) Basic survival curve + KM overlay -------------------------------
# Matches tp.hp.dead.sas (survival panel).
# SAS: SSURVIV on y-axis, SCLLSURV/SCLUSURV for CI, plout circles + bars.
hazard_plot(
  dat,
  estimate_col  = "survival",
  lower_col     = "surv_lower",
  upper_col     = "surv_upper",
  empirical     = emp,
  emp_lower_col = "lower",
  emp_upper_col = "upper"
) +
  scale_colour_manual(values = c("steelblue"), guide = "none") +
  scale_fill_manual(values = c("steelblue"), guide = "none") +
  scale_x_continuous(limits = c(0, 10), breaks = 0:10) +
  scale_y_continuous(limits = c(0, 100), breaks = seq(0, 100, 20),
                     labels = function(x) paste0(x, "%")) +
  labs(x = "Years", y = "Survival (%)") +
  hv_theme("poster")


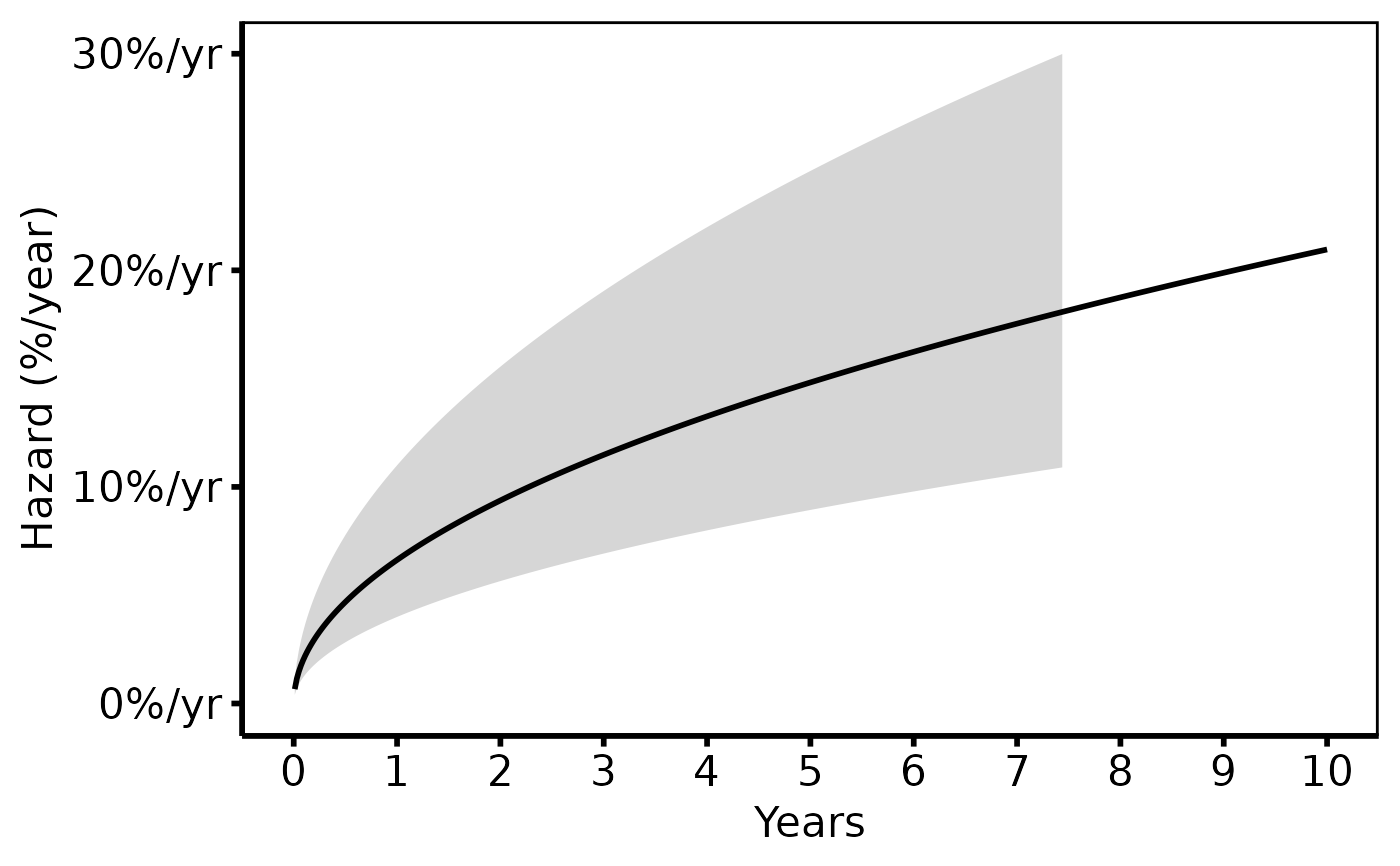

# --- (2) Hazard rate curve + KM overlay ----------------------------------
# Matches tp.hp.dead.sas (hazard panel).
# SAS: hazard on y-axis (%/year). KM empirical hazard not shown here
# (the empirical overlay in SAS is the survival-based dot plot; for hazard,
# only the parametric curve is typically shown).
hazard_plot(
  dat,
  estimate_col = "hazard",
  lower_col    = "haz_lower",
  upper_col    = "haz_upper"
) +
  scale_colour_manual(values = c("firebrick"), guide = "none") +
  scale_fill_manual(values = c("firebrick"), guide = "none") +
  scale_x_continuous(limits = c(0, 10), breaks = 0:10) +
  scale_y_continuous(limits = c(0, 30),
                     labels = function(x) paste0(x, "%/yr")) +
  labs(x = "Years", y = "Hazard (%/year)") +
  hv_theme("poster")
#> Warning: Removed 128 rows containing missing values or values outside the scale range
#> (`geom_ribbon()`).


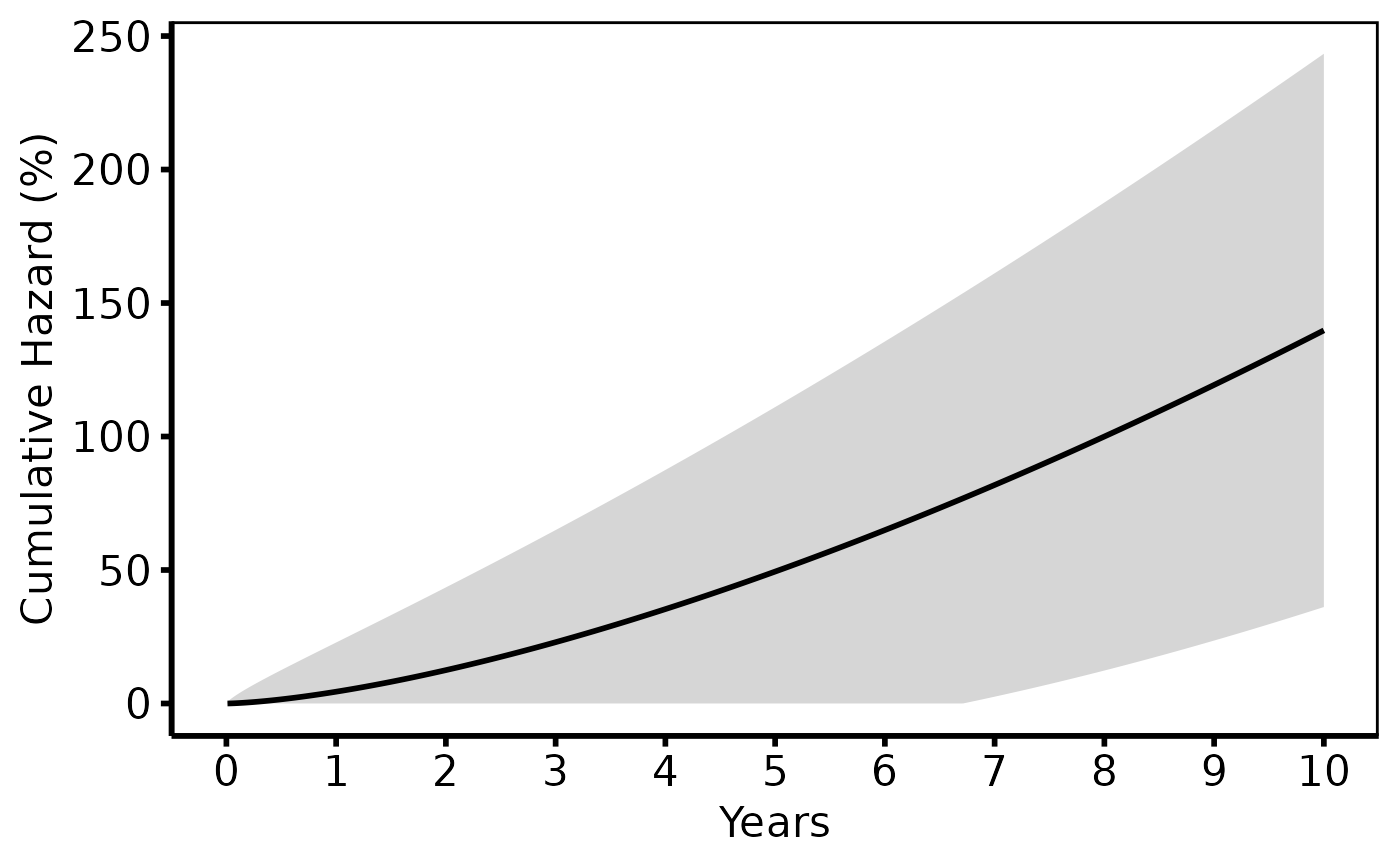

# --- (3) Cumulative hazard (tp.hp.event.weighted.sas) --------------------
# For readmission / repeated-event analyses: cumhaz = -log(S)*100.
# SAS: Nelson-Aalen cumulative hazard. R: use cumhaz column from predict.
hazard_plot(
  dat,
  estimate_col  = "cumhaz",
  lower_col     = "cumhaz_lower",
  upper_col     = "cumhaz_upper"
) +
  scale_colour_manual(values = c("darkorange"), guide = "none") +
  scale_fill_manual(values = c("darkorange"), guide = "none") +
  scale_x_continuous(limits = c(0, 10), breaks = 0:10) +
  labs(x = "Years", y = "Cumulative Hazard (%)") +
  hv_theme("poster")


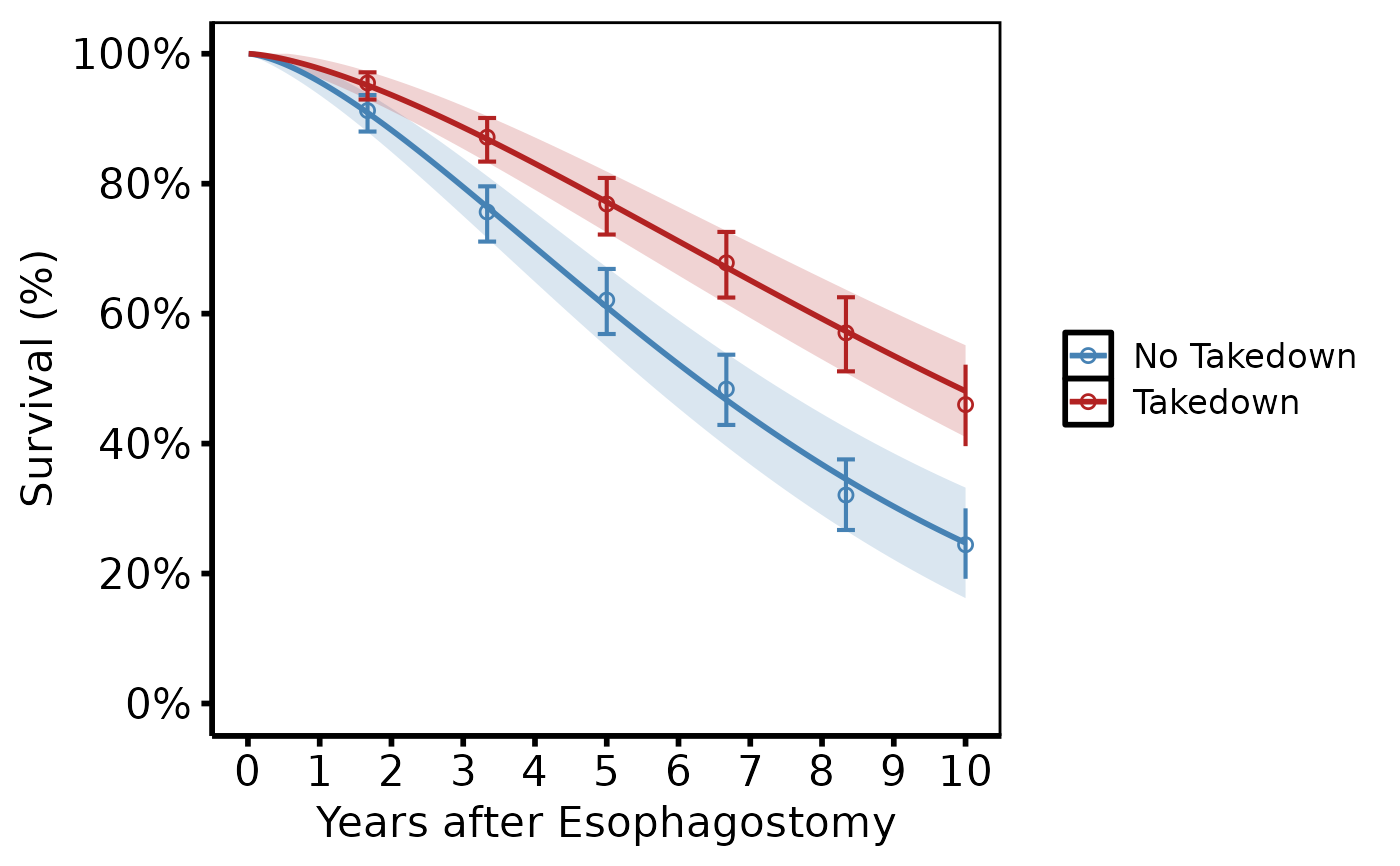

# --- (4) Stratified survival (tp.hp.dead.tkdn.stratified.sas) ------------
# Two groups (e.g. Takedown vs No Takedown) with different colours and
# linetypes. KM empirical overlay uses matching colours.
dat2 <- sample_hazard_data(
  n = 400, time_max = 10,
  groups = c("No Takedown" = 1.0, "Takedown" = 0.65)
)
emp2 <- sample_hazard_empirical(
  n = 400, time_max = 10, n_bins = 6,
  groups = c("No Takedown" = 1.0, "Takedown" = 0.65)
)
hazard_plot(
  dat2,
  estimate_col  = "survival",
  lower_col     = "surv_lower",
  upper_col     = "surv_upper",
  group_col     = "group",
  empirical     = emp2,
  emp_lower_col = "lower",
  emp_upper_col = "upper"
) +
  scale_colour_manual(
    values = c("No Takedown" = "steelblue", "Takedown" = "firebrick"),
    name   = NULL
  ) +
  scale_fill_manual(
    values = c("No Takedown" = "steelblue", "Takedown" = "firebrick"),
    guide  = "none"
  ) +
  scale_x_continuous(limits = c(0, 10), breaks = 0:10) +
  scale_y_continuous(limits = c(0, 100), breaks = seq(0, 100, 20),
                     labels = function(x) paste0(x, "%")) +
  labs(x = "Years after Esophagostomy", y = "Survival (%)") +
  hv_theme("poster")


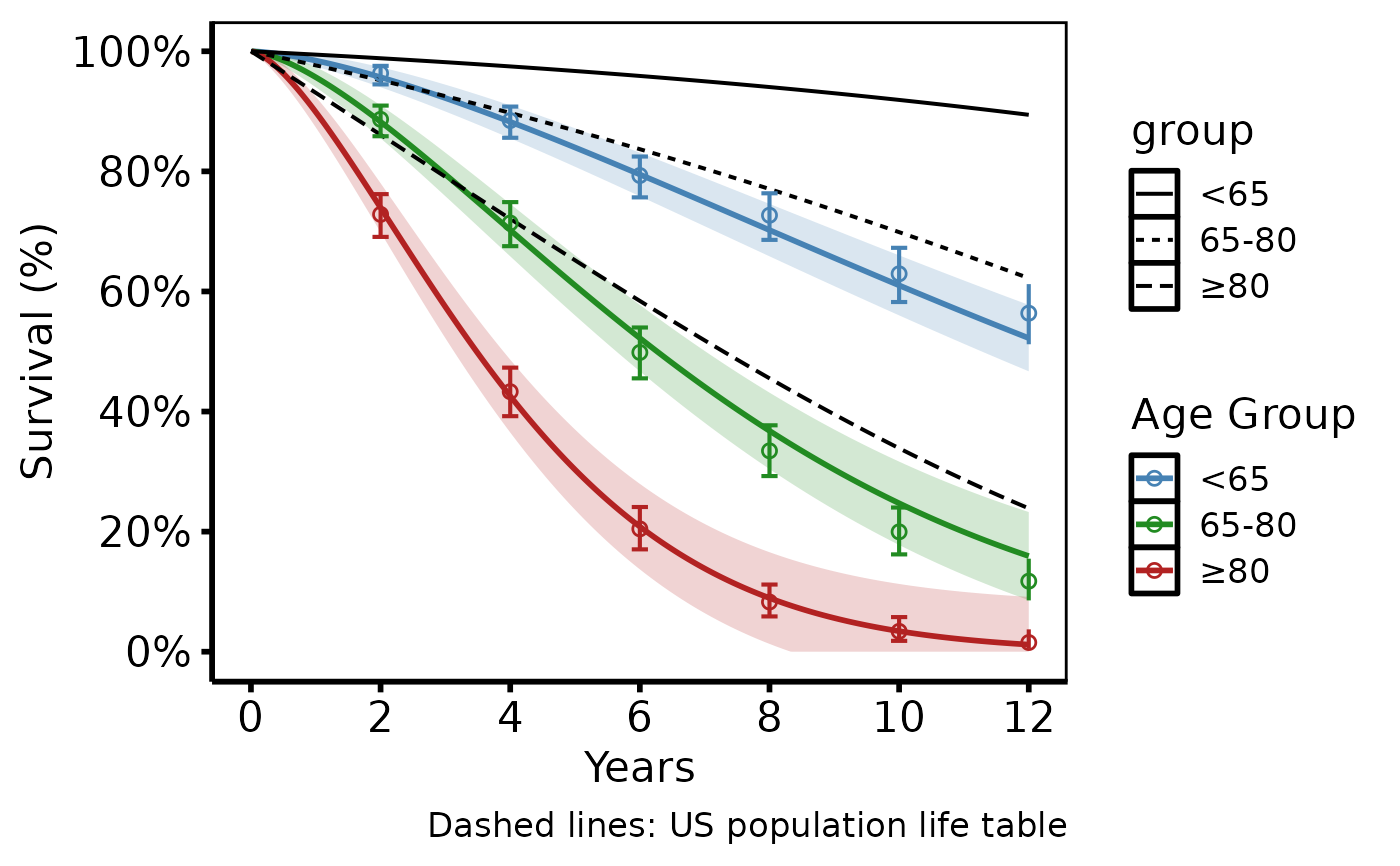

# --- (5) Life table overlay (tp.hp.dead.age_with_population_life_table) ---
# Age-stratified study curves + US population life table reference (dashed).
# SAS: smatched as dashed overlay; different symbols per age group.
dat3 <- sample_hazard_data(
  n = 600, time_max = 12,
  groups = c("<65" = 0.5, "65-80" = 1.0, "\u226580" = 1.8)
)
emp3 <- sample_hazard_empirical(
  n = 600, time_max = 12, n_bins = 6,
  groups = c("<65" = 0.5, "65-80" = 1.0, "\u226580" = 1.8)
)
lt <- sample_life_table(time_max = 12)

hazard_plot(
  dat3,
  estimate_col     = "survival",
  lower_col        = "surv_lower",
  upper_col        = "surv_upper",
  group_col        = "group",
  empirical        = emp3,
  emp_lower_col    = "lower",
  emp_upper_col    = "upper",
  reference        = lt,
  ref_estimate_col = "survival",
  ref_group_col    = "group"
) +
  scale_colour_manual(
    values = c("<65" = "steelblue", "65-80" = "forestgreen",
               "\u226580" = "firebrick"),
    name = "Age Group"
  ) +
  scale_fill_manual(
    values = c("<65" = "steelblue", "65-80" = "forestgreen",
               "\u226580" = "firebrick"),
    guide  = "none"
  ) +
  scale_x_continuous(limits = c(0, 12), breaks = seq(0, 12, 2)) +
  scale_y_continuous(limits = c(0, 100), breaks = seq(0, 100, 20),
                     labels = function(x) paste0(x, "%")) +
  labs(x = "Years", y = "Survival (%)",
       caption = "Dashed lines: US population life table") +
  hv_theme("poster")


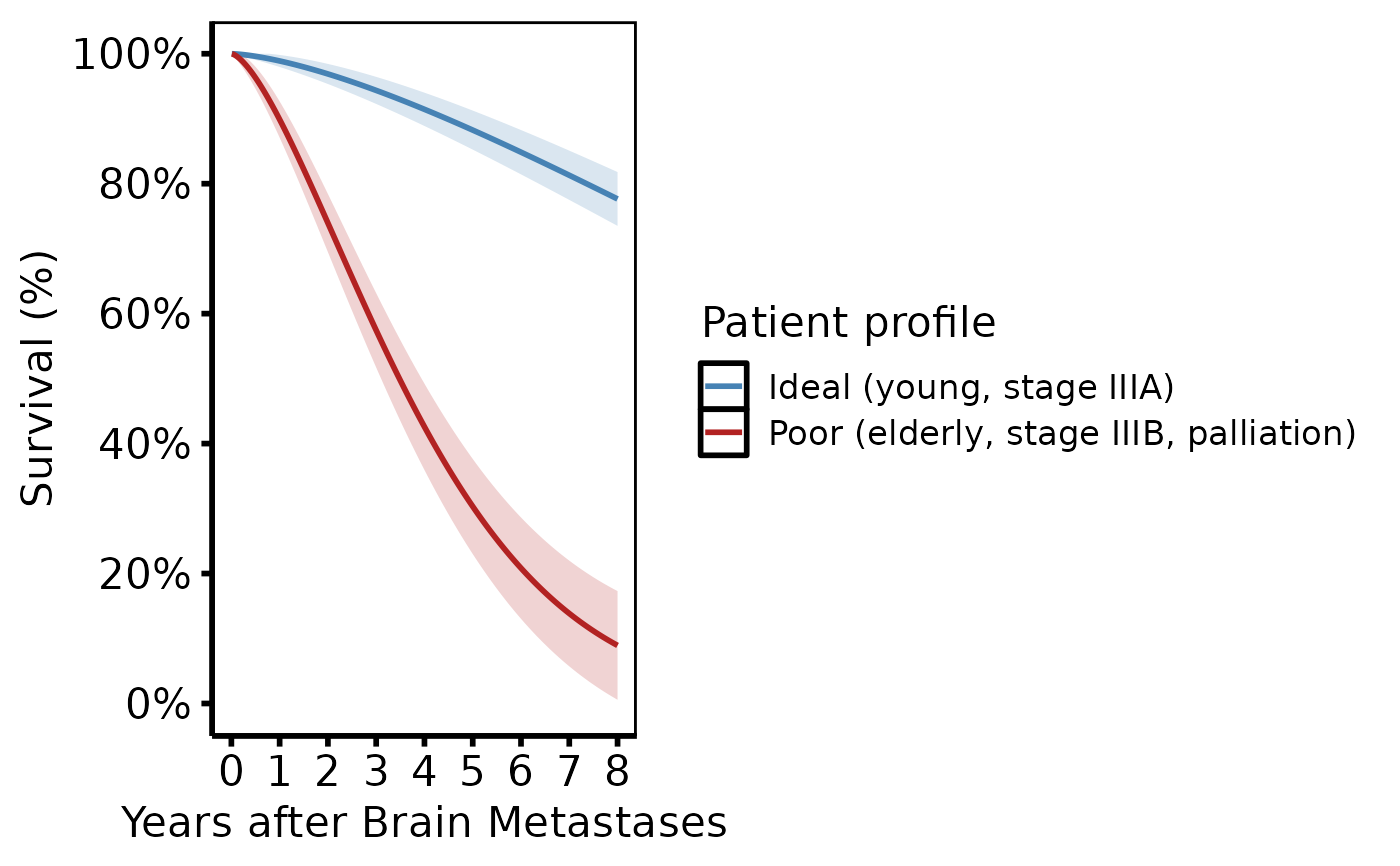

# --- (6) Multivariable risk profiles (tp.hp.dead.ideal_multivariable) -----
# Patient profiles with distinct covariate combinations (good vs poor risk).
dat_risk <- sample_hazard_data(
  n = 500, time_max = 8,
  groups = c("Ideal (young, stage IIIA)" = 0.4,
             "Poor (elderly, stage IIIB, palliation)" = 1.8)
)
hazard_plot(
  dat_risk,
  estimate_col = "survival",
  lower_col    = "surv_lower",
  upper_col    = "surv_upper",
  group_col    = "group"
) +
  scale_colour_manual(
    values = c("Ideal (young, stage IIIA)"              = "steelblue",
               "Poor (elderly, stage IIIB, palliation)" = "firebrick"),
    name   = "Patient profile"
  ) +
  scale_fill_manual(
    values = c("Ideal (young, stage IIIA)"              = "steelblue",
               "Poor (elderly, stage IIIB, palliation)" = "firebrick"),
    guide  = "none"
  ) +
  scale_x_continuous(limits = c(0, 8), breaks = 0:8) +
  scale_y_continuous(limits = c(0, 100), breaks = seq(0, 100, 20),
                     labels = function(x) paste0(x, "%")) +
  labs(x = "Years after Brain Metastases",
       y = "Survival (%)") +
  hv_theme("poster")


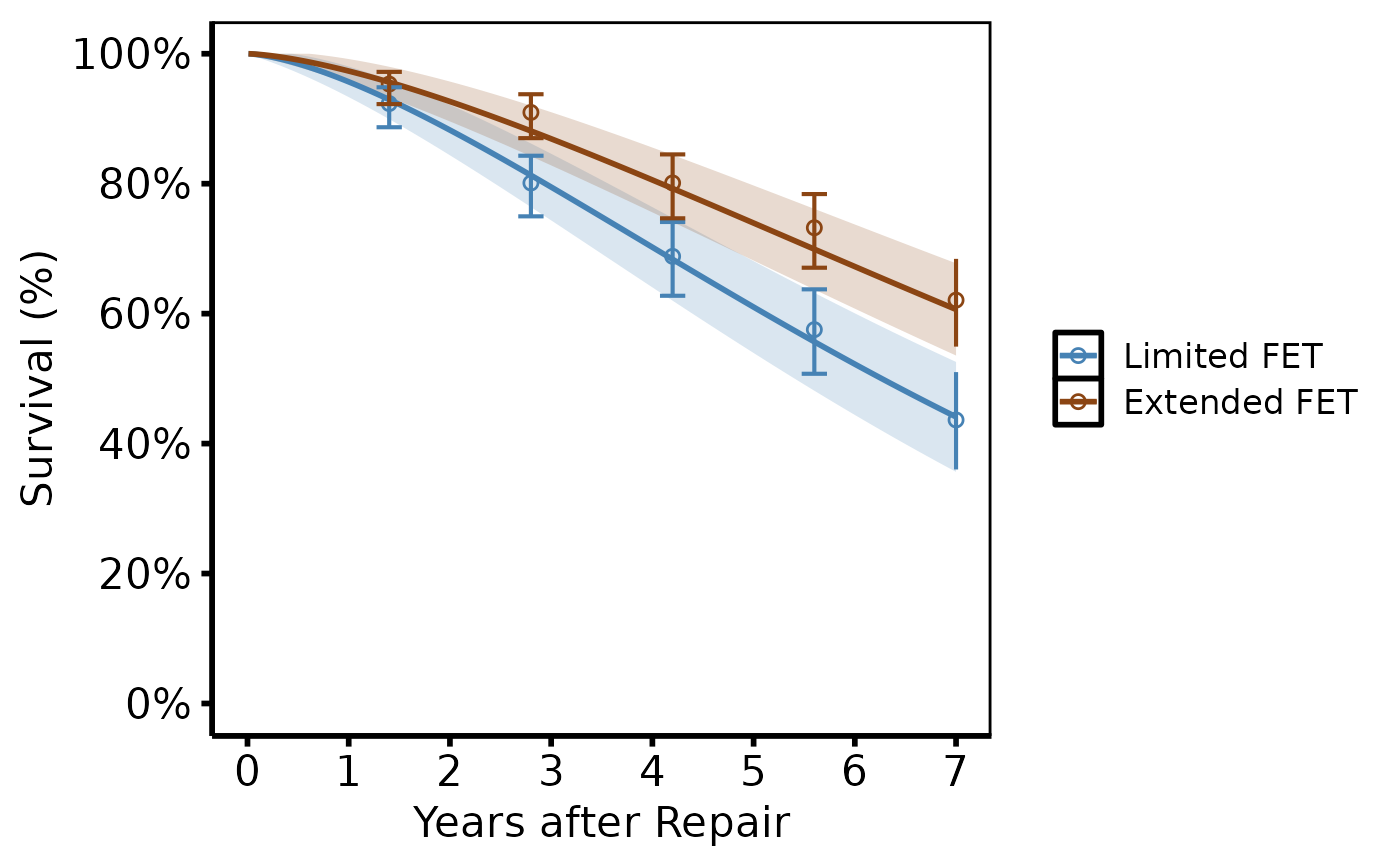

# --- (7) Propensity-weighted / matched groups -----------------------------
# tp.hp.dead.matching_weight.sas / tp.hp.dead.limited_FET.mtwt.sas.
# Propensity weighting is applied upstream (before plotting); the plot call
# is identical to the basic stratified survival plot above.
dat_match <- sample_hazard_data(
  n = 300, time_max = 7,
  groups = c("Limited FET" = 1.0, "Extended FET" = 0.72)
)
emp_match <- sample_hazard_empirical(
  n = 300, time_max = 7, n_bins = 5,
  groups = c("Limited FET" = 1.0, "Extended FET" = 0.72)
)
hazard_plot(
  dat_match,
  estimate_col  = "survival",
  lower_col     = "surv_lower",
  upper_col     = "surv_upper",
  group_col     = "group",
  empirical     = emp_match,
  emp_lower_col = "lower",
  emp_upper_col = "upper"
) +
  scale_colour_manual(
    values = c("Limited FET" = "steelblue", "Extended FET" = "#8B4513"),
    name   = NULL
  ) +
  scale_fill_manual(
    values = c("Limited FET" = "steelblue", "Extended FET" = "#8B4513"),
    guide  = "none"
  ) +
  scale_x_continuous(limits = c(0, 7), breaks = 0:7) +
  scale_y_continuous(limits = c(0, 100), breaks = seq(0, 100, 20),
                     labels = function(x) paste0(x, "%")) +
  labs(x = "Years after Repair", y = "Survival (%)") +
  hv_theme("poster")


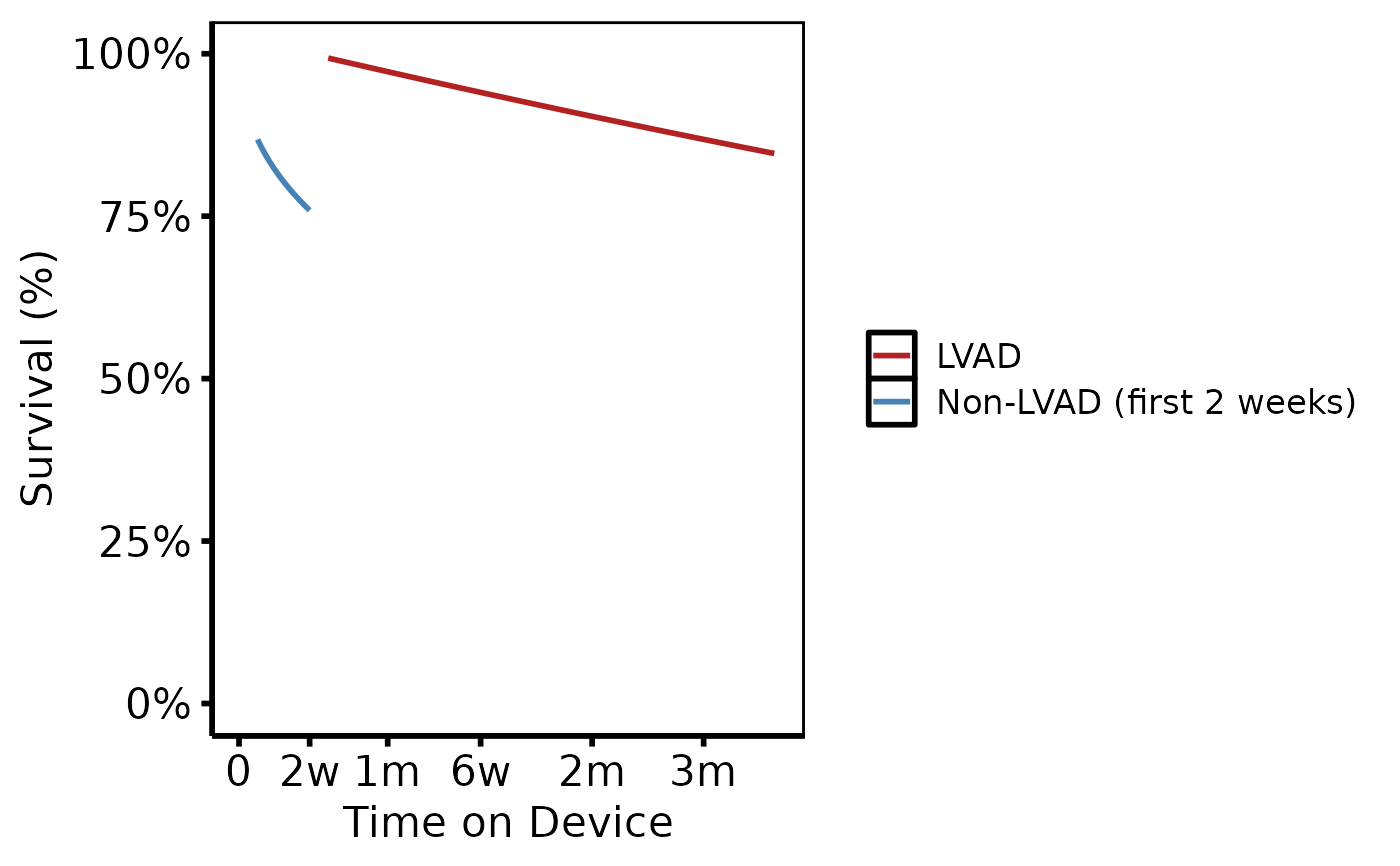

# --- (8) Device sequencing (tp.hp.mcs.mod.dead.devseq) -------------------
# Survival conditioned on surviving the non-LVAD phase, then the LVAD phase.
# In R: generate two separate prediction segments and rbind them.
dat_dev1 <- sample_hazard_data(n = 200, time_max = 0.038,
                                shape = 0.5, scale = 0.5)
dat_dev1$device <- "Non-LVAD (first 2 weeks)"
dat_dev2 <- sample_hazard_data(n = 200, time_max = 0.25,
                                shape = 1.0, scale = 1.5)
dat_dev2$time   <- dat_dev2$time + 0.038
dat_dev2$device <- "LVAD"
dat_dev  <- rbind(dat_dev1, dat_dev2)
hazard_plot(
  dat_dev,
  estimate_col = "survival",
  group_col    = "device"
) +
  scale_colour_manual(
    values = c("Non-LVAD (first 2 weeks)" = "steelblue", "LVAD" = "firebrick"),
    name   = NULL
  ) +
  scale_x_continuous(limits = c(0, 0.29),
                      breaks = c(0, 0.038, 0.08, 0.13, 0.19, 0.25),
                      labels = c("0", "2w", "1m", "6w", "2m", "3m")) +
  scale_y_continuous(limits = c(0, 100),
                      labels = function(x) paste0(x, "%")) +
  labs(x = "Time on Device", y = "Survival (%)") +
  hv_theme("poster")


# --- (9) Save (dontrun) --------------------------------------------------
if (FALSE) { # \dontrun{
p <- hazard_plot(dat, estimate_col = "survival",
                 lower_col = "surv_lower", upper_col = "surv_upper",
                 empirical = emp,
                 emp_lower_col = "lower", emp_upper_col = "upper") +
  scale_colour_manual(values = c("steelblue"), guide = "none") +
  scale_fill_manual(values = c("steelblue"), guide = "none") +
  labs(x = "Years", y = "Survival (%)") +
  hv_theme("poster")
ggplot2::ggsave("survival.pdf", p, width = 11.5, height = 8)
} # }

# --- Global theme + RColorBrewer (set once per session) ------------------
if (FALSE) { # \dontrun{
old <- ggplot2::theme_set(hv_theme_manuscript())
hazard_plot(
  dat2,
  estimate_col  = "survival",
  lower_col     = "surv_lower",
  upper_col     = "surv_upper",
  group_col     = "group",
  empirical     = emp2,
  emp_lower_col = "lower",
  emp_upper_col = "upper"
) +
  ggplot2::scale_colour_brewer(palette = "Set1", name = NULL) +
  ggplot2::scale_fill_brewer(palette   = "Set1", guide = "none") +
  ggplot2::scale_x_continuous(limits = c(0, 10), breaks = 0:10) +
  ggplot2::scale_y_continuous(limits = c(0, 100), breaks = seq(0, 100, 20),
                              labels = function(x) paste0(x, "%")) +
  ggplot2::labs(x = "Years", y = "Survival (%)")
ggplot2::theme_set(old)
} # }

# See vignette("plot-decorators", package = "hvtiPlotR") for theming,
# colour scales, annotation labels, and saving plots.

Usage

Arguments

Value

References

See also

Examples
