Many manuscript figures are paired with a small numeric table: a numbers-at-risk strip below a Kaplan-Meier curve, or the count panel beneath a longitudinal participation bar chart. The hvtiPlotR plot objects carry these companion tables alongside the plot data, so we can pull the numbers straight out and render them with gt (Iannone et al. 2026). As with the publication tables chapter, these tables will migrate to the planned hvtiRtables package once it is available.
A figure shows the shape of a result; the companion table gives the reader the numbers the shape rests on. The two go together when a curve hides how much data backs each region of it. The clearest case is the numbers-at-risk strip beneath a Kaplan-Meier curve: the curve might look confident out at ten years, but if only eight patients remain at risk there, the at-risk row is what tells the reader to read that tail with caution. Reach for a companion table whenever the figure invites a question the plot cannot answer on its own (“based on how many?”) and you want the answer on the same page rather than buried in the text.
We work through two cases the package already supports: the at-risk strip that a survival curve needs beside it, and the participation counts that sit beneath a longitudinal bar chart. In both, the numbers already live on the plot object, so we never recompute them and risk a table that disagrees with its own figure.
hv_survival() stores its companion tables in the object’s $tables slot. The numbers-at-risk strip lives in $tables$risk (one row per strata × report-time) and the per-time-point summary in $tables$report.
km <- hv_survival(sample_survival_data(n = 500, seed = 42))
names(km$tables)[1] "risk" "report"str(km$tables$risk)'data.frame': 6 obs. of 3 variables:
$ strata : chr "All" "All" "All" "All" ...
$ report_time: num 1 5 10 15 20 25
$ n.risk : num 478 412 322 260 207 207We render the at-risk table directly with gt, relabelling the columns for presentation.
km$tables$risk |>
gt() |>
tab_header(
title = "Numbers at Risk",
subtitle = "Patients remaining under follow-up at each report time"
) |>
cols_label(
strata = "Stratum",
report_time = "Time (years)",
n.risk = "At risk (n)"
)| Numbers at Risk | ||
| Patients remaining under follow-up at each report time | ||
| Stratum | Time (years) | At risk (n) |
|---|---|---|
| All | 1 | 478 |
| All | 5 | 412 |
| All | 10 | 322 |
| All | 15 | 260 |
| All | 20 | 207 |
| All | 25 | 207 |
The companion report table carries the survival estimates and confidence limits at the same report times — useful as the figure caption’s numeric backing.
km$tables$report |>
gt() |>
tab_header(title = "Survival Estimates at Report Times") |>
cols_label(
strata = "Stratum",
report_time = "Time (years)",
surv = "S(t)",
lower = "95% LCL",
upper = "95% UCL",
n.risk = "At risk",
n.event = "Events"
) |>
fmt_number(columns = c(surv, lower, upper), decimals = 3)| Survival Estimates at Report Times | ||||||
| Stratum | Time (years) | S(t) | 95% LCL | 95% UCL | At risk | Events |
|---|---|---|---|---|---|---|
| All | 1 | 0.954 | 0.932 | 0.969 | 478 | 1 |
| All | 5 | 0.822 | 0.786 | 0.853 | 412 | 1 |
| All | 10 | 0.642 | 0.599 | 0.683 | 322 | 1 |
| All | 15 | 0.518 | 0.474 | 0.562 | 260 | 1 |
| All | 20 | 0.414 | 0.372 | 0.458 | 207 | 0 |
| All | 25 | 0.414 | 0.372 | 0.458 | 207 | 0 |
hv_longitudinal() produces a two-panel figure: a grouped bar chart of participation counts and a numeric table panel below it. The underlying counts live in the object’s $data slot in long format (one row per time-window × series), with the column roles recorded in $meta.
lc <- hv_longitudinal(sample_longitudinal_counts_data(n_patients = 300, seed = 42L))
names(lc)[1] "data" "meta" "tables"lc$meta[c("x_col", "group_col", "count_col")]$x_col
[1] "time_label"
$group_col
[1] "series"
$count_col
[1] "count"str(lc$data)'data.frame': 14 obs. of 3 variables:
$ time_label: Factor w/ 7 levels "≥0 Days","≥1 Month",..: 1 2 3 4 5 6 7 1 2 3 ...
$ series : chr "Patients" "Patients" "Patients" "Patients" ...
$ count : int 19 47 49 100 159 101 276 19 50 56 ...We reshape the long counts into a wide table (one row per follow-up window, one column per series) and render it with gt. This is the tabular companion to the bar chart’s table panel.
lc_wide <- lc$data |>
tidyr::pivot_wider(
names_from = series,
values_from = count
)
lc_wide# A tibble: 7 × 3
time_label Patients Measurements
<fct> <int> <int>
1 ≥0 Days 19 19
2 ≥1 Month 47 50
3 ≥3 Months 49 56
4 ≥6 Months 100 118
5 ≥1 Year 159 217
6 ≥2 Years 101 113
7 ≥2.5 Years 276 620lc_wide |>
gt(rowname_col = "time_label") |>
tab_header(
title = "Longitudinal Participation Counts",
subtitle = "Patients and measurements at each follow-up window"
) |>
fmt_number(columns = where(is.numeric), decimals = 0) |>
tab_stubhead(label = "Follow-up window")| Longitudinal Participation Counts | ||
| Patients and measurements at each follow-up window | ||
| Follow-up window | Patients | Measurements |
|---|---|---|
| ≥0 Days | 19 | 19 |
| ≥1 Month | 47 | 50 |
| ≥3 Months | 49 | 56 |
| ≥6 Months | 100 | 118 |
| ≥1 Year | 159 | 217 |
| ≥2 Years | 101 | 113 |
| ≥2.5 Years | 276 | 620 |

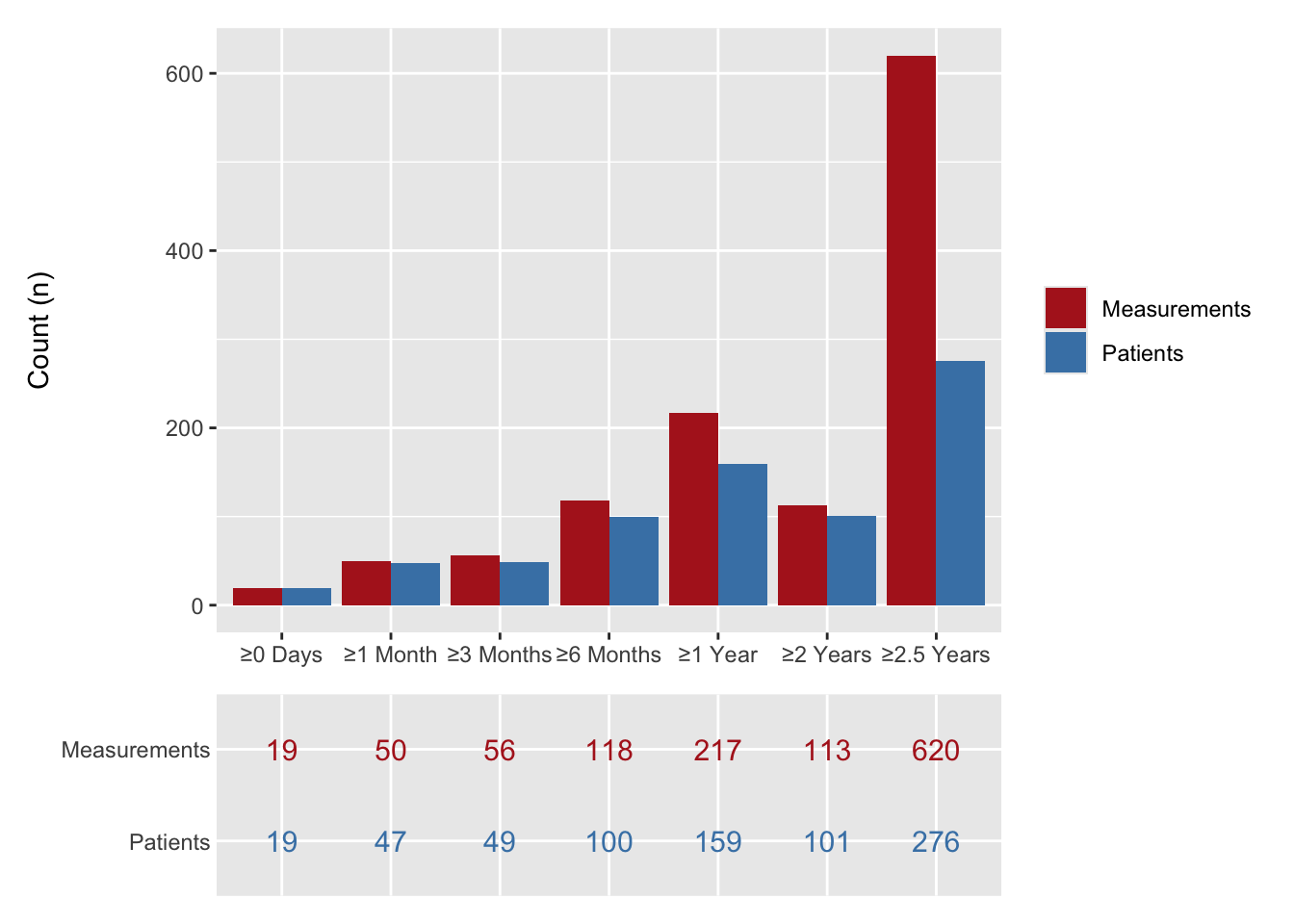

The gt version above is for a standalone table, say in the manuscript body or a supplement. When the numbers belong inside the figure, the package draws them as a table panel you stack under the chart. For reference, the same counts rendered as the in-figure table panel appear below the bar chart when the two are composed with patchwork. Building both from the same lc$data keeps the standalone table and the in-figure panel telling one story.
p_bar <- plot(lc) +
scale_fill_manual(
values = c(Patients = "steelblue", Measurements = "firebrick"),
name = NULL
) +
labs(x = NULL, y = "Count (n)")
p_tbl <- plot(lc, type = "table") +
scale_colour_manual(
values = c(Patients = "steelblue", Measurements = "firebrick"),
guide = "none"
)
p_bar / p_tbl + plot_layout(heights = c(3, 1))
$tables$risk is computed by the same constructor that drew the curve, the report times already agree; the trap appears when you hand-edit one axis or crop the plot with coord_cartesian() and forget the table still shows the full range. Change the axis in one place and check the other followed.
